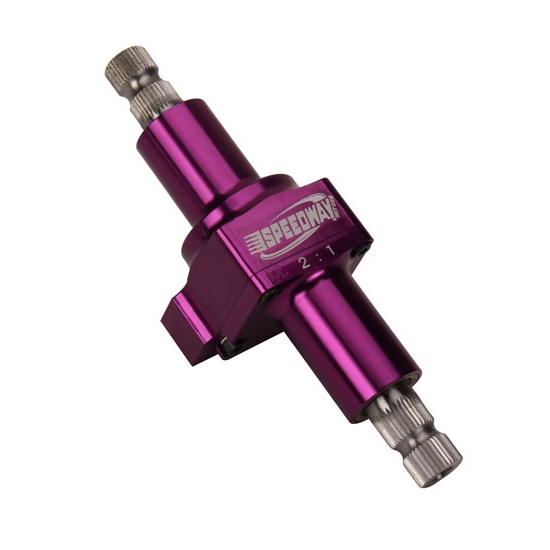

Speedway Small Body 2:1 Steering Quickener

SAME DAY SHIPPING! Order within the next 14 hours 33 minutes and receive same day shipping

Free Shipping Free Shipping
Speedway Small Body 2:1 Steering Quickener
Speedway Small Body 2:1 Steering Quickener
Speedway Small Body 2:1 Steering Quickener
Speedway Small Body 2:1 Steering Quickener

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

This small body steering quickener weighs less than 1.8 lbs. and takes up a lot less space than other steering quickeners. 3/4" 36-spline.

2-1/2" x 2-1/2" x 8" overall length.

Specs

  • 8" L x 2.5" W x 2.5" T

Customer Reviews

Rated 5 out of 5 by 3 reviewers.
RATING BREAKDOWN
3 reviews
5 Stars
3
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

DILYSI Dave
Verified Purchaser
Atlanta, GA

Works well, no slop, good price.

January 24, 2012
Works well, no slop, good price. Would be nice if it wasn't purple, but whatever.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Stockcar 00
Verified Purchaser
Ramah, Co

worth every penny

July 08, 2011
My old quickener wore out & I needed to replace it. I bought a product I could trust & it works great. Thanks Speedway. RJ Headley
Pros:
  • Great response
  • Improves Handling
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

grummy
Manitowoc, WI

Great for TRACTORS TOO !

September 09, 2010
I used it backwards in a Garden Tractor to make it steer easier. Worked fantastic ! One issue though is that the female splines they sell with it fit a little sloppy onto the stub ends, but I was able to shim it by putting some .004 brass shim stock on the backside of the tightening bolt. This is more of an issue here because unlike a car, this has a very short steering shaft and any out of round action can bind things up. LOVE IT.
Pros:
  • Compact
  • Tight
  • Well Built - I opened it
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

9 questions : 9 answers

1 answers

What this make my van turn easier? I have a Chevy van with no power steering and need a gorilla to turn the wheels! Is this product designed to make the steering easier?

Myvan
Saint Charles, MO, USA
March 02, 2015

What this make my van turn easier? I have a Chevy van with no power steering and need a gorilla to turn the wheels! Is this product designed to make the steering easier?

Answers

March 03, 2015
EricM
No this will not make your steering easier. Your best bet would be to change to a power steering box.
1 answers

Does this come with the 3/4 36 spline cupplers to install this?

letsmake
October 20, 2014

Does this come with the 3/4 36 spline cupplers to install this?

Answers

October 20, 2014
EricM
No the couplers are not included but we do offer them as part number 91032281 or a U-joint such as 91032236 can be used if needed.
1 answers

Mitsubishi L200 works Hi, Works on Mitsubishi L200? adaptation is simple? Any idea or recommendation. My car Mitsubishi L200 2.5 TD 4x4 Warrior - chassis MMBJNK740YD003136, 1999 Version – K74TGJENXFL6 Regards

Arobalo
Portugal
August 08, 2014

Mitsubishi L200 works Hi, Works on Mitsubishi L200? adaptation is simple? Any idea or recommendation. My car Mitsubishi L200 2.5 TD 4x4 Warrior - chassis MMBJNK740YD003136, 1999 Version – K74TGJENXFL6 Regards

Answers

August 08, 2014
EricM
It may be able to be adapted to your Mitsubishi but we have never used it on that application before so you will have to first make sure it will fit. You vehicle will need to have a straight section of steering shaft between the column and the steering box at least 12" long in order to install this quickener. You will have to cut a portion of that shaft out and weld on couplers or U-joints to it which have 3/4"-36 spline to fit this quickener. We offer coupler 91032281-PLN that work well if you have 3/4" OD steering shaft. You will also need to weld a bracket to the chassis of the vehicle to bolt this quickener to.
1 answers

can this item be used on a street car?

fastsmitty
Eugene, OR, USA
May 01, 2014

can this item be used on a street car?

Answers

May 01, 2014
EricM
Yes you could use this on a street driven vehicle.
1 answers

Hi, would you know if this product would fit a FWD Escort GT?

PurpRally
November 01, 2013

Hi, would you know if this product would fit a FWD Escort GT?

Answers

November 01, 2013
Jason
The Speedway small body steering quickner is universal design, not made for any specific application. It measures 2-1/2" x 2-1/2" x 8" overall length and has 3/4" 36-spline. Sorry, we have no information regarding fitment for the Ford Escort
1 answers

Can this quickener be converted to a 1.5:1 ratio Can parts be ordered from Speedway motors to convert this 2:1 quickener to a 1.5:1 ratio? I already purchased one of these last year and would like to decrease the ratio a bit. Thanks.

buktooth
Ontario, Canada
February 26, 2013

Can this quickener be converted to a 1.5:1 ratio Can parts be ordered from Speedway motors to convert this 2:1 quickener to a 1.5:1 ratio? I already purchased one of these last year and would like to decrease the ratio a bit. Thanks.

Answers

February 26, 2013
Jason
Sorry, we do not offer parts to convert the speedway steering quickner to a 1.5 ratio. We do offer part #91032203 that is 1.5 ratio. This is a Howe racing part.
1 answers

do you need an adapter to mount the quickener to the dash?

crateracer
January 27, 2013

do you need an adapter to mount the quickener to the dash?

Answers

January 28, 2013
Jason
It is not recommended to put the steering quickner right up by the steering wheel. For best performance this should be mounted on motor side of firewall.
1 answers

Do you mount the steering wheel on the Quickener directly? or do I need to add a steering shaft to the quickener out to the steering wheel with a bearing?

Regal26.5
San Jose,Ca
January 07, 2011

Do you mount the steering wheel on the Quickener directly? or do I need to add a steering shaft to the quickener out to the steering wheel with a bearing?

Answers

January 11, 2011
Eric
Typically there will be a coupler or U-joint with a length of shaft supported by a bearing between the quickener and the steering wheel. I would not recommend mounting the steering wheel directly at the end of the quickener due to that placing a high amount of side load on the bearings of the quickener which it was not designed for.
1 answers

Will the force required to steer increases after installing quicker for mechanical steering system? if yes, how much?

Vinni
Karnataka, India
June 05, 2015

Will the force required to steer increases after installing quicker for mechanical steering system? if yes, how much?

Answers

June 08, 2015
Eric
Expert
Yes this is a 2:1 quickener so the steering wheel movement required will be cut in half but the effort to turn the wheel will be doubled.
Page 1 of 1
