Small Block Chevy Clipster Headers, AHC Coated

SAME DAY SHIPPING! Order within the next 17 hours 8 minutes and receive same day shipping

Specs
Material Type:
Steel
Overall Height:
16.00
Sold in Quantity:
Pair
Finish:
AHC Coated
Tube O.D.:
1.63
Port Height:
1.72
Port Width:
1.38
Flange Thickness:
.38
Flange Style:
Round Port
Collector Diameter :
3.00
Header Dimension A:
4.00
Header Dimension B:
16.00
Header Dimension C:
25.00
Gasket(s) Included:
Yes
Hardware Included:
Yes
Drivers Side Dimension A:
6.13
Drivers Side Dimension B:
13.50
Drivers Side Dimension C:
23.00
Passenger Side Dimension A:
4.85
Passenger Side Dimension B:
11.30
Passenger Side Dimension C:
26.38
Collector Length:
5.00
Garage Sale:
No
Header Tube Type:
Mid-Length

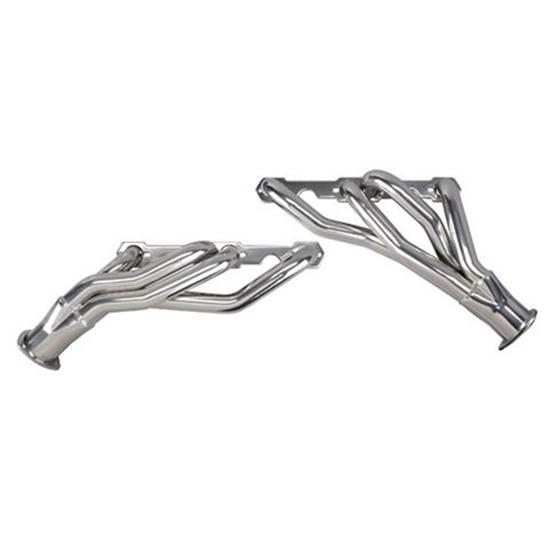

Small Block Chevy Clipster Headers, AHC Coated
Small Block Chevy Clipster Headers, AHC Coated
Product Video
Small Block Chevy Clipster Headers, AHC Coated

Click image to enlarge

Watch the video below to learn more about Speedway Motors Armor Hot Coat (AHC)

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

These S/B Chevy Clipster headers are for 1964-87 GM A*, F* and G-Body cars and fit many street rod applications with uni-body front clip suspensions. Clipster headers use longer primaries than Tight Tucks, yet shorter than full length headers. Collectors exit toward the rear of the engine compartment providing excellent ground clearance on "slammed" applications as well as clearing steering and suspension components. These ceramic coated headers provide superior performance and durability.

1-5/8" primaries and 3" collectors. Fits straight or angle plug heads.

Header Sizing Chart (GIF)

 * See NOTES tab for chassis fittment details.

Application

Applications include, but not limited to:

  • 1967-1981 Camaro
  • 1964-1981 Chevelle, Malibu
  • 1964-1988 El Camino
  • 1968-1979 Nova
  • 1970-1988 Monte Carlo

Notes

  1. Works with angle plug heads.
  2. Will not work with D-port heads.
  3. May interfere with mechanical clutch linkage (substitute headers 930-0109).
  4. If fitting on an early A-Body, #5 primary tube may interfere with steering shaft. Some 'massaging' may be required.
  5. Will not fit with Saginaw Close Ratio 825 Steering Box.
  6. Does not fit 1967-69 Camaro with A/C.
  7. Will fit Detroit Speed & Engineering front subframes with rack and pinion steering.
  8. Armor Hot Coating (AHC) is a heat resistant, ceramic coating applied to the outside of the header. This coating will reflect heat, which helps retain more heat within the header tube while simultaneously speeding up the exhaust flow. Not only will this coating help you make more horsepower, it also keeps your headers rust-free, looking great, and lasting longer (when properly maintained).  If you are looking for a show-quality finish for your headers, this is it! Our AHC will withstand exhaust temperatures of up to 1300Ëš F.

Warranties

AHC Warning: AHC coatings will burn and be damaged at exhaust temperatures over 1300 degrees. A lean fuel mixture can generate exhaust temperatures exceeding 1700-1900 degrees. If the coating is damaged due to a lean condition, the coating will not be warranted, but can be recoated for a fee.

Not legal for sale or use in California on pollution controlled vehicles

Customer Reviews

Rated 4.3 out of 5 by 3 reviewers.
RATING BREAKDOWN
3 reviews
5 Stars
2
4 Stars
0
3 Stars
1
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Superjess2
Texas
Product Rating

Good headers do not fit

May 08, 2013
I put the headers on for ground clearance and they look great with fair quality until I tried to install the plugs. These are advertised to fit angle plug heads - they do not. Even with a 0.375 spacer and expensive shorty plugs, the headers will not clear the plugs. I have Edelbrock aluminum Victor Jr heads in a 70 Camaro so nothing strange here. I may have to put some pretty good size dents in the headers to gain clearance. The finish is good where tou can see. However-areas behind other pipes were not coated and will lead to premature rusting.
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Dave
Verified Purchaser
Tucumcari , n.m.
Product Rating

clipsters save the day

September 21, 2011
worked well on the lowered truck
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

rockcrawln71
Verified Purchaser
Product Rating

headers

March 18, 2015
Bolted in easily in my El Camino coating looks nice, had to use one shorty plug.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
9300108H

Product Q&A

6 questions : 6 answers

1 answers

Are these headers available for square port SBC heads?

AJMontrealNascar
Montreal, Canada
June 10, 2014

Are these headers available for square port SBC heads?

Answers

June 10, 2014
EricM
This header has a round port on it but it is large enough to work just fine on stock SBC cylinder heads. Nearly every SBC head made is a square or rectangular shaped port.
1 answers

Will these fit an '85 Chevy 4X4 with a 350?

dankahle
Norway, IA
July 01, 2013

Will these fit an '85 Chevy 4X4 with a 350?

Answers

July 01, 2013
Jason
Speedway offers the following information to help determine fit: Tube O.D. : 1.63 " Collector Diameter : 3.00 " Collector Length : 5.00 " Flange Style : Round Port Flange Thickness : .38 " Port Height : 1.72 " Port Width : 1.38 " Drivers Side Dimension A : 6.13 " Drivers Side Dimension B : 13.50 " Drivers Side Dimension C : 23.00 " Passenger Side Dimension A : 4.85 " Passenger Side Dimension B : 11.30 " Passenger Side Dimension C : 26.38 " Hardware Included : Yes Gasket(s) Included : Yes # Will not work with D-port heads. # May interfere with mechanical clutch # Will not fit with Saginaw Close Ratio 825 Steering Box. # Does not fit 1967-69 Camaro with A/C. # Will fit Detroit Speed & Engineering front subframes with rack and pinion steering.
1 answers

what is AHC coated? are these polished?

Dlab
Norwalk ca.90650
December 17, 2012

what is AHC coated? are these polished?

Answers

December 18, 2012
Jason
AHC stands for Armored Hot Coating. AHC is dual in apperance compared to chrome but will not discolor like chrome. Chrome is for show car only and AHC is for a driver. AHC will stand up to temperature upto 1300 degrees. It will not polich like chrome
1 answers

will these work on 1967 camaro with lt1

spiderweb
erwin tn. 37650
May 26, 2011

will these work on 1967 camaro with lt1

Answers

June 02, 2011
John
These headers work on many applications including the A, F, and G body GM cars. This would include the early 67-69 Camaro, and also the 64 through the mid 70’s Chevelles, Lemans, Cutlas, etc.
1 answers

DO YOU INCLUDE HARDWARE, COLLECTORS, GASKETS, AND INSTRUCTIONS?

MIKE
PEARCY, AR
May 03, 2011

DO YOU INCLUDE HARDWARE, COLLECTORS, GASKETS, AND INSTRUCTIONS?

Answers

May 05, 2011
Pat
These will have the collectors, gaskets and bolts.
1 answers

will this header work on a 78 camaro that has the motor set back aprox. 4 inches. this for dirt track application.

florence, ms
February 02, 2011

will this header work on a 78 camaro that has the motor set back aprox. 4 inches. this for dirt track application.

Answers

February 08, 2011
Scott
Thanks for you question on our Clipster style headers. On headers in a race car we never guarantee a fit. I can give you some helpful measurements to check for fitment on you car. A-width of header at widest point from exhaust port. 4” B-height of header from top of flange to lowest point 16” C-length of header from front of flange to collector 25” If you take these measurements it should give you a good idea to where it will place the headers in case there is an issue with clearance.
Page 1 of 1
