Stock Small Block Chevy Claimer Oil Pan Combo, Left Hand Side Dipstick

Specs
Material Type:
Steel
Sold in Quantity:
Kit
Finish:
Natural
Liquid Measurement:
6
Depth:
7.25
Dipstick Location:
Driver Side
Oil Inspection Plug:
No
Pan Style:
2-Piece Rear Main
Garage Sale:
No
Sump Style:
Wet Sump
Stock Small Block Chevy Claimer Oil Pan Combo, Left Hand Side Dipstick
Stock Small Block Chevy Claimer Oil Pan Combo, Left Hand Side Dipstick
Stock Small Block Chevy Claimer Oil Pan Combo, Left Hand Side Dipstick
Stock Small Block Chevy Claimer Oil Pan Combo, Left Hand Side Dipstick

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

Save money with our Claimer Pan Combos! For Small Block Chevy 1955-79 (driver side dipstick). Will not fit rear steer cars unless the engine has been moved back. Works with stock or mini starters.

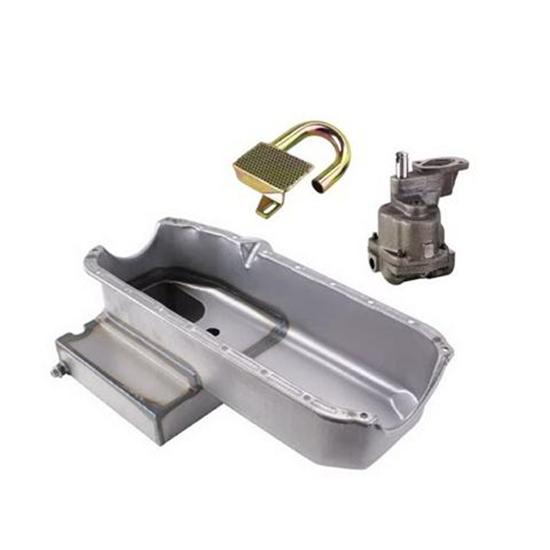

Kits include:

  • Claimer Oil Pan (6 quart, 7-1/4" deep)
  • Oil Pump Pickup, 5/8" diameter
  • Stock Volume Pump

Item Details

1955-1979 LH Dipstick

Customer Reviews

Rated 4.2 out of 5 by 5 reviewers.
RATING BREAKDOWN
5 reviews
5 Stars
3
4 Stars
1
3 Stars
0
2 Stars
1
1 Star
0
RECOMMEND THIS PRODUCT:

dont have a nickname
Verified Purchaser
castorland new york
Product Rating

very good product would buy again.

May 11, 2012
i used it in my super stock car and my oil pressure stayed up.dont have anything to say about it not so great.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Kyle
Verified Purchaser
Cleveland ,ohio
Product Rating

huge bang for the buck

April 13, 2011
This product matches what you pay alot more from the other guys and you get the strainer and pump with it for this great price will buy again if needed
Pros:
  • Easy To Install
  • Durable
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

wiley
Verified Purchaser
Lakewood, NY
Product Rating

Hard assembly and installation

February 22, 2012
The pickup tube tab doesn't line up with pump bolt. Had to bend tab to get the bolt hole to line up. Suction tube was very hard to get into pump bore as well.
Pros:
  • Lightweight
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Madracr07 or BooBoo
Verified Purchaser
Rowlett Texas
Product Rating

Good combo kit for the budget racer

April 28, 2012
For the racer on a budget this is a good deal.No need to drive to the other places, when I can just hit a button and have it delivered in a few days.
Pros:
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

anvile
byron ny
Product Rating

cant beat it

May 24, 2010
it was better to get the kit than piece it to gether you know they work to gether and for racing it leavs extra for other parts
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

6 questions : 6 answers

I have this pan I need the pick up!!! Can I get just the pick up??

1 answers
stinger154
June 23, 2014

I have this pan I need the pick up!!! Can I get just the pick up??

Answers

June 24, 2014
EricM
Yes the pickup tube for a standard volume pump is part number 91715135 and a pickup tube for a high volume pump is number 91715136

Will this work with splayed main caps? also does it fit 3.875 stroke? thanks

1 answers
December 31, 2011

Will this work with splayed main caps? also does it fit 3.875 stroke? thanks

Answers

January 02, 2012
Eric
Yes this pan will fit with splayed main caps. It may or may not require a slight dimple for the 3.875” stroke depending on how the connecting rod and rod bolt is designed.

will it fit 87 sbc

1 answers
February 17, 2011

will it fit 87 sbc

Answers

February 21, 2011
Jacob
Our Claimer Pan Combos such as this one are compatible with a 1985 and earlier small block Chevrolet with a two piece rear main seal. If you are looking for a circle track oil pan to be used on a 1986 and newer one-piece rear seal engine, I would suggest our part number 910-15108, 545-21320, or 545-21324. These are excellent pans and should work for your 1987 small block Chevrolet. Thanks for your Question.

how many gates does it have

1 answers
February 15, 2011

how many gates does it have

Answers

February 17, 2011
Jacob
These claimer pan combinations have two gates in the sump. One gate prevents the oil from going forward, and the other keeps it from flowing into the right side kick-out. Thanks for your question.

How many Quarts does this pan hold.2nd request

1 answers
Roudy
reidsville nc
January 24, 2011

How many Quarts does this pan hold.2nd request

Answers

January 25, 2011
Jeremy O
Roudy, This pan is a six quart capacity.

parts included?? Does this kit include all the needed parts/gaskets to install into my car?

1 answers
Markmags85
Bedford, NY, USA
October 17, 2012

parts included?? Does this kit include all the needed parts/gaskets to install into my car?

Answers

October 17, 2012
Jason
This kit includes the oil pan, oil pump and pick up for pump. You will need to purchase a gasket, oil pump bolt/stud and pan bolts seperate.
