Small Block Chevy 1935-48 Fat Fenderwell Headers, Plain

SAME DAY SHIPPING! Order within the next 5 hours 11 minutes and receive same day shipping

Specs
Material Type:
Steel
Overall Height:
19.00
Sold in Quantity:
Pair
Finish:
Natural
Tube O.D.:
1.63
Flange Thickness:
.31
Flange Style:
Round Port
Collector Diameter :
2.50
Header Dimension A:
19.00
Header Dimension B:
11.25
Header Dimension C:
27.00
Gasket(s) Included:
Yes
Hardware Included:
Yes
Drivers Side Dimension A:
19.20
Drivers Side Dimension B:
11.88
Drivers Side Dimension C:
27.00
Passenger Side Dimension A:
18.88
Passenger Side Dimension B:
12.50
Passenger Side Dimension C:
26.38
Collector Length:
4.50
Garage Sale:
No
Header Tube Type:
Fenderwell
Notes
Collector flange is angled. Made from 18 gauge tubing. Reducers are 2.50" to 2.25".

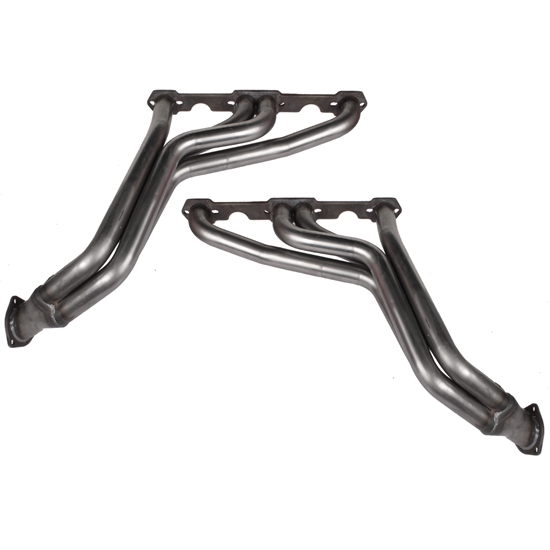

Small Block Chevy 1935-48 Fat Fenderwell Headers, PlainSmall Block Chevy 1935-48 Fat Fenderwell Headers, Plain
Small Block Chevy 1935-48 Fat Fenderwell Headers, Plain

Click image to enlarge

Speeday Motors Logo
X
Small Block Chevy 1935-48 Fat Fenderwell Headers, Plain

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

These small-block Chevy 265-400 V8 headers are designed for optimum performance in a variety of 1935-1948 fat-fendered street rod and pickup applications. Perfect for Gasser-style rods and drag cars, the fender well headers have long primary tubes that curve over the frame and through the fender wells. You must cut the inner fender panels to make them fit.

Fender Well Header Specs Chart (GIF)

Includes collectors, collector gaskets, header gaskets, header bolts, and collector bolts.

Application

  1. Can be used with most oil filter system or transmission and starter combination.
  2. Fits most angle plug heads.
  3. Check motor mount position before ordering.
  4. Not legal for sale or use in California on pollution controlled vehicles.

Notes

  • Primary Tube Diameter:  1-5/8"
  • Collector Diameter:  2-1/2"
  • Header Flange Type:  Round Port
  • Gasket Ports:  1-7/8" x 1-3/8"
  • Base of flange to bottom of collector is 9"
  • At approximately 6" from flange at 2nd bend, there is about 2" of drop from flange
  • At approximately 15" from flange at 3rd bend, there is about 4" of drop from flange

Specs
