Rubber Front Brake Lines & Fitting Kit, 10mm-1.5

Specs
Material Type:
Rubber
Overall Length:
15.00
Sold in Quantity:
Kit
Thread Pitch:
10mm-1.50
Garage Sale:
No
Notes
Includes hoses, crush washers, and hose tabs.
Rubber Front Brake Lines & Fitting Kit, 10mm-1.5
Rubber Front Brake Lines & Fitting Kit, 10mm-1.5
Product Video
Rubber Front Brake Lines & Fitting Kit, 10mm-1.5

Click image to enlarge

Watch the video below to learn more about the differences in brake lines, flare types and fittings you may want to consider before plumbing away on your current chassis project.

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

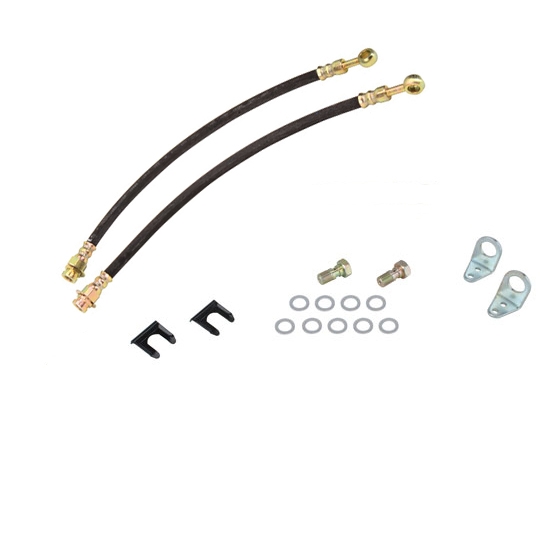

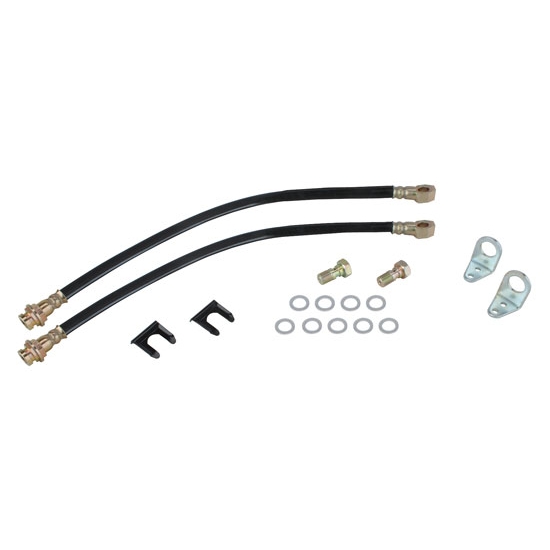

Stop guessing which banjo fittings go with which brake lines. With this kit you get two rubber front brake lines, two banjo bolts with seals, and a pair of easy to install brake line tabs and clips.

  • 15" length including fittings
  • 3/8"-24 IFF and 10mm-1.5
  • For 1978-1988 GM Calipers

Lines are 15" in length. Features 3/8"-24 IFF at the chassis fitting to accept 3/16" brake line.

Notes

  1. If using 1/4" brake line with a 7/16"-24 flare nut on your chassis, use adapter fitting # 9103183-3/8 which has a 3/8"-24 IF male and a 7/16"-24 IF female configuration.
  2. Brake System Builder's Tip (Link)
