RideTech 02011034 Shockwave 7000 Series Air Ride Rear Kit, 14-1/2 Inch

SAME DAY SHIPPING! Order within the next 7 hours 33 minutes and receive same day shipping

RideTech 02011034 Shockwave 7000 Series Air Ride Rear Kit, 14-1/2 InchRideTech 02011034 Shockwave 7000 Series Air Ride Rear Kit, 14-1/2 Inch
RideTech 02011034 Shockwave 7000 Series Air Ride Rear Kit, 14-1/2 Inch

Click image to enlarge

Speeday Motors Logo
X
RideTech 02011034 Shockwave 7000 Series Air Ride Rear Kit, 14-1/2 Inch

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

The RideTech Shockwaves will give you the ride you've been looking for. The 7000 series is 4" in diameter and has a load capacity of 780 lbs. @ 100 psi air pressure. These work well with a rear axle weight of 1500 lbs. or less. No air tank required.

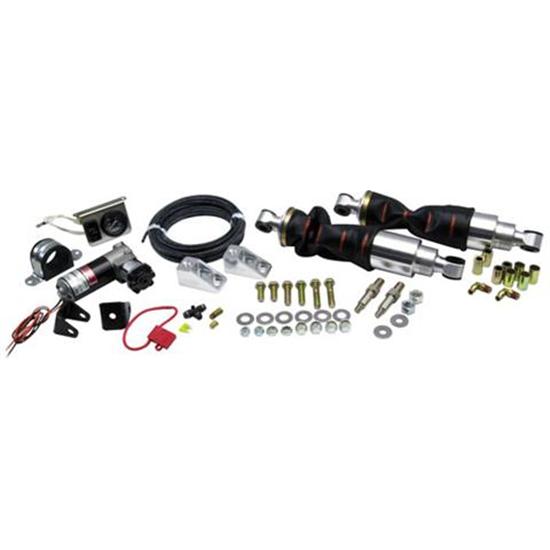

Kit includes:

  • Two Shockwaves  (SKW7000)
  • Air compressor  (ARC1500)
  • Control panel  (CON1500)
  • Mounting hardware, lines and fittings
  • 11.56" eye to eye compressed
  • 14.50" eye to eye at ride height
  • 16.56" eye to eye fully extended
  • 5" stroke

Item Details

14-1/2" ride height
