RideTech 30154000 Air Ride Suspension RidePro 4-Wheel Compressor Kit

RideTech 30154000 Air Ride Suspension RidePro 4-Wheel Compressor Kit

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Air Ride Technologies' classic, standard, non-electronic RidePRO systems use the highest quality valve bodies, compressors, and components to deliver dependable and repeatable manual control. Manual controls provide the ability to inflate or deflate system. With the exception of our ShockWave kits, our air ride conversion kits DO NOT include a compressor, controls, etc.

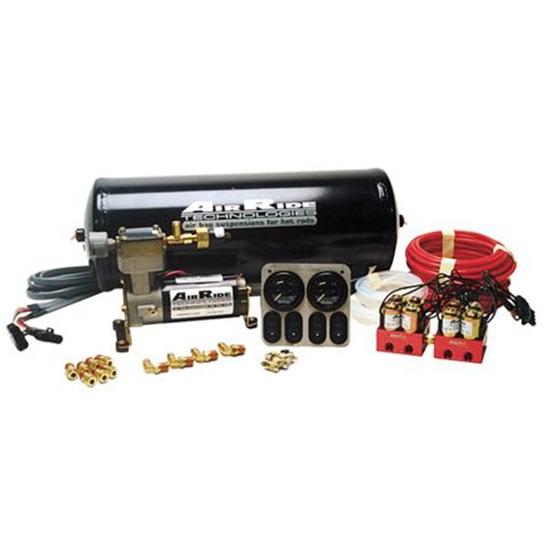

Kit includes:

  • Tank
  • Compressor
  • Control panel
  • Electronic solenoids mount anywhere
  • 4-way independent manual control system with RidePro electric valves

Tank Dimensions (GIF)

Application

RidePro manual-controller systems are the right choice for bare bones installs and folks looking to for the most inexpensive way to run air suspension system.

Features


Item Details

Tank, compressor, control panel, air lines, & solenoids

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

DanD
Verified Purchaser
St Louis,Mo.
Product Rating

Ride Pro System

December 31, 2010
Was fairly easy to install and works great
Pros:
  • Easy To Use
  • Versatile
  • Durable
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 2 answers

what size air line comes with it?

1 answers
DAVE-O
March 16, 2012

what size air line comes with it?

Answers

March 20, 2012
John
The Air Ride kits have ¼” line to the components and 1/8” line to the gauges.

what valve are included is it the big red set or standard

1 answers
nickb
louisville, ky
March 13, 2011

what valve are included is it the big red set or standard

Answers

March 21, 2011
Pat
Part # 9104000 Ride pro 4-way 4 wheel system comes with 4-way independent manual control system with RidePro electric valves. Part # 9101004 Air ride 2 wheel compressor kit contains Tank, compressor, control panel. Controls two air springs. One pneumatic valve at dash, etc...
Page 1 of 1
