Rectangular Headlights, Standard Bulb

SAME DAY SHIPPING! Order within the next 2 hours 3 minutes and receive same day shipping

Specs
Material Type:
Steel
Overall Height:
4.00
Overall Width:
4.75
Overall Length:
7.50
Sold in Quantity:
Pair
Finish:
Chrome
Stud Length:
1.00
Thread Pitch:
7/16"-18
Threads:
RH Male
Bezel Finish:
Chrome
Bulb Type:
4652
Lens Material:
Glass
Garage Sale:
No

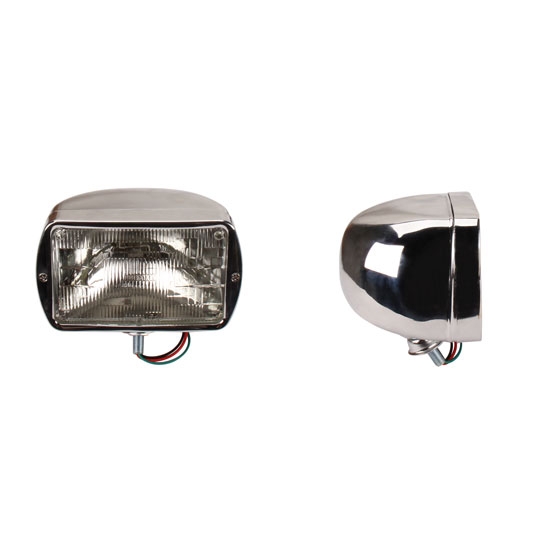

Rectangular Headlights, Standard Bulb
Rectangular Headlights, Standard Bulb

Click image to enlarge

Speeday Motors Logo
X
Rectangular Headlights, Standard Bulb

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

Chrome housing complete with G.E. wired 12 volt high/low sealed beam bulb. Easy to install, mounting bolts included.

  • 7-1/2" x 4-3/4" x 4"
  • 40/60 watts
  • Ribbed glass lens
  • Black Wire = Ground
  • Red Wire = Low Beam
  • Green Wire = High Beam

Wiring Chart (GIF)
