Rear Shock Mount Bolts

Rear Shock Mount Bolts
Rear Shock Mount Bolts
Rear Shock Mount Bolts

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

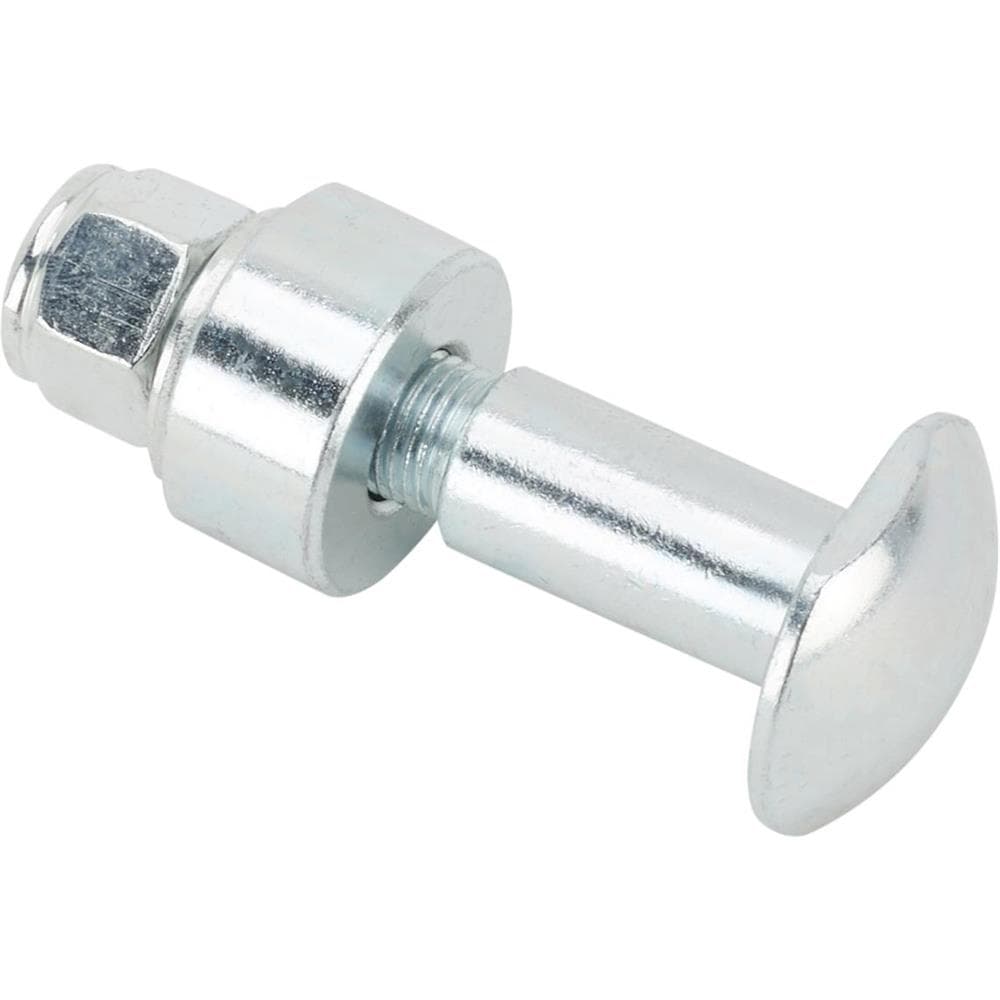

Rear shock mounting bolt has a 1/2" stud and a 5/8" shank. The under head length on this bolt is 2.75", and 1.5" of that is threaded.

Bolts sold individually.

Item Details

1/2" Stud, 5/8" Shank

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Korgen
Verified Purchaser
Wilsonville, OR, USA
Product Rating

Great in a tight spot

October 14, 2014
I had very little room for a shock mount on the new axles for my trailer. These were the only mounting bolts that I found to fit my situation. They are well made and much less bulky that other mounts.
Pros:
  • Compact
  • Sturdy
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
91036095

Product Q&A

4 questions : 5 answers

1 answers

Is the sleeve/collar that I see on this shock mount threaded and meant to be welded onto something?

January 03, 2011

Is the sleeve/collar that I see on this shock mount threaded and meant to be welded onto something?

Answers

January 06, 2011
Tom
No, the collar is not threaded, nor is it designed to be welded into position. The collar serves two purposes, primarily the collar acts as an additional support shoulder to further strengthen its mounting point by distributing more area to the mounting surface. Secondly, it can be used as a spacer for a narrow shock eyelet.
1 answers

How long are these bolts? Is that a spacer on the shank?

August 12, 2011

How long are these bolts? Is that a spacer on the shank?

Answers

August 16, 2011
QC
The under head length on this bolt is 2.75" 1.5" of that is threaded (leaving 1.25" shank). There is no spacer for the shank on this bolt.
2 answers

What is this made of? Is it stainless or zinc plated?

December 31, 2011

What is this made of? Is it stainless or zinc plated?

Answers

October 15, 2014
Korgen
Zinc plated
January 03, 2012
John
Part number 91036095 These are cad plated steel shock mount bolts. If you are in need of a shock mount for coil over applications or for extended spacing we offer part number 91636010 in stainless with an aluminum spacer in plain or polished finish.
1 answers

What is the thread pitch on these?

Glenn
Scott La
April 20, 2015

What is the thread pitch on these?

Answers

April 20, 2015
Eric
Expert
This bolt has 1/2" - 20 threads.
Page 1 of 1
