Ram Clutches 401 10-1/2 Inch GM Pressure Plate, Nodular Ring 17.5 Lbs

SAME DAY SHIPPING! Order within the next 1 hour 10 minutes and receive same day shipping

Free Shipping Free Shipping

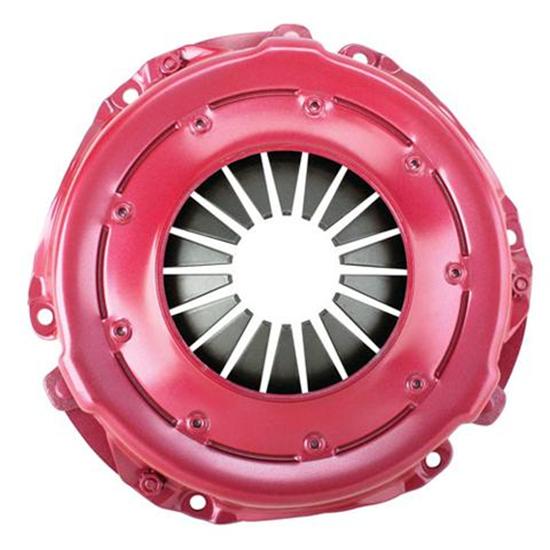

Ram Clutches 401 10-1/2 Inch GM Pressure Plate, Nodular Ring 17.5 Lbs
Ram Clutches 401 10-1/2 Inch GM Pressure Plate, Nodular Ring 17.5 Lbs
Ram Clutches 401 10-1/2 Inch GM Pressure Plate, Nodular Ring 17.5 Lbs

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Ram clutches for stock clutch rule classes give you unmatched performance and durability. These 10.5 inch diameter assemblies utilize a nodular iron pressure ring which provides a durable mating surface for the clutch disc. A 2800 lb. pressure spring provides increased static pressure over stock clutches.

If your rules require a full facing or sprung hub disc, the RAM 300 Series organic racing disc provides the best holding power of any organic disc available and adds only about 2 pounds to the total weight of the set.

All Ram street stock clutches are completely rebuildable by the factory.

Tech Tip:  When installing a new clutch, be sure to follow the manufacturers instructions for correct set-up.  You should also replace the pilot bushing/bearing.

Tech Tip:  To extend the life of your expensive racing clutch you should not use it to load the car on or in your trailer.  The amount of slippage this causes is worse than a night of racing.

Item Details

17.5 lbs.

Customer Reviews

This product has no reviews.

Product Q&A

2 questions : 2 answers

1 answers

difference between ram 401 and ram 1675L?

captchkn
May 13, 2013

difference between ram 401 and ram 1675L?

Answers

May 14, 2013
Jason
Ram number 1675L is basically a stock replacement pressure plate. Ram number 401 has more clamping force and is designed for a true racing application. Ram number 401CT is the same as 401 but has material removed to be lighter weight. 401 weighs 17.5 lbs and 401CT weighs 14.1 lbs.
1 answers

I have an IMCA modified with a 3 spd Saginaw,what clutch and throw out bearing are compatible. I am running a spec 350 SBC with about 400HP.

Fuzzy
Edmonton AB
June 05, 2015

I have an IMCA modified with a 3 spd Saginaw,what clutch and throw out bearing are compatible. I am running a spec 350 SBC with about 400HP.

Answers

June 05, 2015
Eric
Expert
Most competitors that have a Saginaw 3 speed transmission in an IMCA modified will use a clutch such as 91025530 or 91038517080. You will then need a flex plate 577FRA112 to be able to start the engine. Hydraulic throwout bearing 91025602 would then be the correct one for either of those mini racing clutches. Also the clutch and flex plate part numbers that I recommended are for 1985 or older 2 piece rear main seal engines only.
Page 1 of 1

You may also be interested in:

Ace Mfg. 10-1/2 Inch GM Pressure Plate, 15 lbs.
(Part #91025711)


Ace Manufacturing and Parts Company is a manufacturer of heavy duty clutches and clutch components, and is known throughout the industry as an innovative leader in clutch technology.

Whether your ride has just been mildly modified or transformed into a real fire-breather, you need to consider Ace Manufacturing pressure plates. Theyre made in both fixed and adjustable static-pressure configurations, incorporating explosion-resistant plates made of steel or aluminum, plus features such as chrome-vanadium springs, heavy-duty covers, and high-strength hardware.

This 10-1/2" racing clutch for GM applications is the perfect choice for Hobby or Street Stock racing.

  • 10-1/2" diameter
  • 15 lbs.
  • GM applications

Item Details

15 lbs.
Ram Clutches 801 10-1/2 Inch GM Pressure Plate, Aluminum Ring, 13.5 Lb
(Part #605801)


Ram clutches for stock clutch rule classes give you unmatched performance and durability. These 10.5 inch diameter assemblies utilize a billet aluminum pressure ring with a riveted steel heat shield which provides a durable mating surface for the clutch disc. A 2800 lb. pressure spring provides increased static pressure over stock clutches.

Used in conjunction with a Ram six paddle solid hub disc, the aluminum ring plate combination weighs in at just over 15 pounds. If your rules require a full facing or sprung hub disc, the Ram 300 Series organic racing disc provides the best holding power of any organic disc available and adds only about 2 pounds to the total weight of the set.

All Ram street stock clutches are completely rebuildable by the factory.

Tech Tip:  When installing a new clutch, be sure to follow the manufacturers instructions for correct set-up.  You should also replace the pilot bushing/bearing.

Tech Tip:  To extend the life of your expensive racing clutch you should not use it to load the car on or in your trailer.  The amount of slippage this causes is worse than a night of racing.

Item Details

13.5 lbs.
Speedway 10-1/2 Inch Pressure Plate, 13.4 Lbs.
(Part #890C1675P)


Speedway developed these 10.5" clutch pressure plates for sportsman circle-track racers. Includes a lightweight, stock-appearing pressure plate that features a ductile iron pressure ring. Can be used with solid or sprung hub clutch discs with organic or ceramic friction surfaces.

This pressure plate can be used with stock or aftermarket flywheels drilled for the 10.5” clutch pattern.

Tech Tip:  When installing a new clutch, be sure to follow the manufacturer's instructions for correct set-up.  You should also replace the pilot bushing/bearing.

Tech Tip:  To extend the life of your expensive racing clutch you should not use it to load the car on or in your trailer.  The amount of slippage this causes is worse than a night of racing.



Speedway 10-1/2 Inch Pressure Plate, 15.3 Lbs.
(Part #890C1675)


Speedway developed these 10.5" clutch pressure plates for sportsman circle-track racers. Includes a lightweight, stock-appearing pressure plate that features a ductile iron pressure ring. Can be used with solid or sprung hub clutch discs with organic or ceramic friction surfaces.

Tech Tip:  When installing a new clutch, be sure to follow the manufacturer's instructions for correct set-up.  You should also replace the pilot bushing/bearing.

Tech Tip:  To extend the life of your expensive racing clutch you should not use it to load the car on or in your trailer.  The amount of slippage this causes is worse than a night of racing.



Ram Clutches 1675L 10.5 Inch GM Pressure Plate, Nodular Ring, 15.18 Lb
(Part #6051675L)


Ram clutches for stock clutch rule classes give you unmatched performance and durability. These 10.5 inch diameter assemblies utilize a nodular iron pressure ring which provides a durable mating surface for the clutch disc. A 2800 lb. pressure spring provides increased static pressure over stock clutches.

If your rules require a full facing or sprung hub disc, the RAM 300 Series organic racing disc provides the best holding power of any organic disc available and adds only about 2 pounds to the total weight of the set.

All Ram street stock clutches are completely rebuildable by the factory.

Tech Tip:  When installing a new clutch, be sure to follow the manufacturers instructions for correct set-up.  You should also replace the pilot bushing/bearing.

Tech Tip:  To extend the life of your expensive racing clutch you should not use it to load the car on or in your trailer.  The amount of slippage this causes is worse than a night of racing.

Item Details

Stock - 15.18 lbs.
Ram Clutches 401CT 10.5 Inch GM Pressure Plate, Nodular Ring, 14.1 Lb
(Part #605401CT)


Ram clutches for stock clutch rule classes give you unmatched performance and durability. These 10.5 inch diameter assemblies utilize a nodular iron pressure ring which provides a durable mating surface for the clutch disc. A 2800 lb. pressure spring provides increased static pressure over stock clutches.

If your rules require a full facing or sprung hub disc, the RAM 300 Series organic racing disc provides the best holding power of any organic disc available and adds only about 2 pounds to the total weight of the set.

All Ram street stock clutches are completely rebuildable by the factory.

Tech Tip:  When installing a new clutch, be sure to follow the manufacturers instructions for correct set-up.  You should also replace the pilot bushing/bearing.

Tech Tip:  To extend the life of your expensive racing clutch you should not use it to load the car on or in your trailer.  The amount of slippage this causes is worse than a night of racing.

Item Details

14.1 lbs.
Ram Clutches 851 10.5 In. GM Pressure Plate-Billet Steel Ring, 13.5 Lb
(Part #605851)


Ram clutches for 'stock clutch rule' classes give you unmatched performance and durability. These 10.5 inch diameter assemblies utilize a nodular iron pressure ring which provides a durable mating surface for the clutch disc. A 2800 lb. pressure spring provides increased static pressure over stock clutches.

If your rules require a full facing or sprung hub disc, the RAM 300 Series organic racing disc provides the best holding power of any organic disc available and adds only about 2 pounds to the total weight of the set.

All Ram street stock clutches are completely rebuildable by the factory.

Tech Tip:  When installing a new clutch, be sure to follow the manufacturer's instructions for correct set-up.  You should also replace the pilot bushing/bearing.

Tech Tip:  To extend the life of your expensive racing clutch you should not use it to load the car on or in your trailer.  The amount of slippage this causes is worse than a night of racing.



Clutch Alignment Tool, 1-1/8 Inch 10-Spline
(Part #5506945)


Inexpensive way to line up your clutch for fast, easy installation. Made of tough nylon.

ARP Fasteners 130-2201 Chevy Pressure Plate Bolts
(Part #1011302201)


The importance of pressure plate bolts in a racing or hi-performance street application cannot be emphasized nearly enough. These fasteners play a key role in both the performance and safety of a vehicle. Because of this, ARP has developed these special High Performance Series pressure plate bolts that are application specific to ensure the optimum grip length.

  • Made from a premium grade chromoly
  • Hardened to a nominal tensile strength of 180,000 psi
  • Large diameter, low-profile design
  • 9/16" head
  • Complete with washers

Item Details

3/8"-16 Thread
Ram Clutches 301M 10.5 Inch Organic Clutch Disc, 1-1/8 Inch 10-Spline
(Part #605301M)


Full face 10-1/2" diameter clutch disc with a sprung hub for softer engagement. 300 Series organic material for single disc pressure plates. Weighs 4 lbs.

Tech Tip:  When installing a new clutch, be sure to follow the manufacturers instructions for correct set-up.  You should also replace the pilot bushing/bearing.

Tech Tip:  To extend the life of your expensive racing clutch you should not use it to load the car on or in your trailer.  The amount of slippage this causes is worse than a night of racing.

Item Details

1-1/8"-10 Spline
4 lbs.
