Radius Rod Frame Mounting Bracket, Tie Rod

Specs
Material Type:
Steel
Overall Height:
4.138
Overall Width:
7.670
Sold in Quantity:
Pair
Overall Thickness:
.177
Finish:
Natural
Inside Diameter:
.619

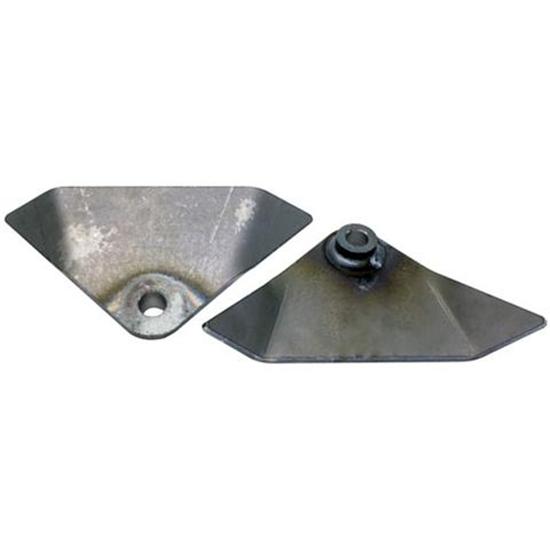

Radius Rod Frame Mounting Bracket, Tie Rod

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

Weld these brackets to the underside of your low-ridin' Model T thru 1934 Ford frame rails for a simple, strong place to attach radius rods using 11/16” Ford style tie rod ends. Plain steel.



  • 4-3/8 Inch Tall
  • 7 Degree Taper



Item Details

For Ford Tie Rod Ends

Customer Reviews

Rated 5 out of 5 by 3 reviewers.
RATING BREAKDOWN
3 reviews
5 Stars
3
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

henry23t
Verified Purchaser
Sunnyvale Ca. USA
Product Rating

very good product..

April 17, 2014
you can mount three different radius rod frame mounting brackets.. one is a 7 degree tie rod ends. second is a four bar ends. and third is the rod ends like the pro-1 that is stronger that you can use.. the bracket is a very good quality.. I use on my 23-t bucket.. I like to choose what bracket I need...
Pros:
  • 23-32 frame it's works great.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Pecdaddy
Las Vegas, NV, USA
Product Rating

Works well.

September 19, 2013
Used on the front and rear wish bones on my Model A.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Paisano-
West River,MD
Product Rating

Good stamping,can't beat it,

February 14, 2010
Its to be welded for radius roads
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
91635052

Product Q&A

1 questions : 2 answers

2 answers

can these be used w/ split wisbones?

mgakabones
Lake Elsinore, California, USA
April 08, 2013

can these be used w/ split wisbones?

Answers

April 18, 2014
henry23t
yes, you can. the tie rod ends on your wishbones will work with the 7 degree set-up brackets that you need.. I'm using a 32 hair-pin set-up on my 23t-bucket with rod ends. like the pro-1. they are stronger than standard ends. the mounting bracket is a very good quality product..
April 09, 2013
Jason
These radius rod frame mount brackets number 91635052 work well with split wishbones having tie rod ends and Speedway makes it easy by offering a split wishbone kit number 91645140 with the 7 degree taper tie rod ends.
