Race Car Style Latch, Polished Stainless Steel

SAME DAY SHIPPING! Order within the next 2 hours 44 minutes and receive same day shipping

Specs
Centerline of Holes:
1.27
Material Type:
Stainless Steel
Overall Width:
1.00
Overall Length:
4.00
Sold in Quantity:
Each
Finish:
Polished
Hardware Included:
Yes
Base Length:
2.44
Base Width:
1.95
Garage Sale:
No

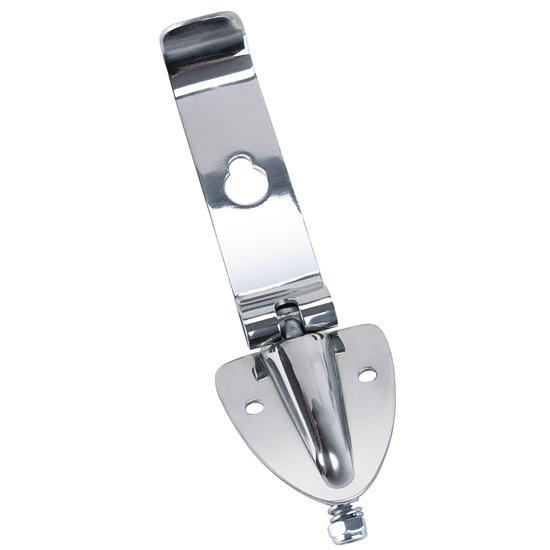

Race Car Style Latch, Polished Stainless Steel

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

This is a spring loaded 1 piece design latch. Simply pull locking tab to fasten over post and spring holds tight. There is a latch stud included with this latch. These are sold as each.

  • Early race car style
  • Polished Stainless Steel
  • Quick release
  • Center of the hinge to the outside of the latch is 3-3/4"
  • Latch is 1" wide by .059" thick. by 4" over all length
  • Mounting plate is 2" wide at widest point and 2-7/16" long by .051" thick
  • Comes with Stud(clip) bolt 10-24(3/16") x 1" long
  • Washer is 1-1/4" o.d.

Customer Reviews

Rated 4 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
0
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Old time fan
Brisbane Australia

Product well made

January 23, 2010
Easy release latch for bonnet
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

6 questions : 6 answers

1 answers

is the mounting plate curved to match a hood or just flat want to use it to mt a fiberglass hood on a 1930 coupe

Skid
Colorado, USA
October 07, 2014

is the mounting plate curved to match a hood or just flat want to use it to mt a fiberglass hood on a 1930 coupe

Answers

October 08, 2014
EricM
The base of this latch is flat.
1 answers

How does this item work, I need a latch for my chevy cheetah. Is there two Sep. Units?

July 18, 2011

How does this item work, I need a latch for my chevy cheetah. Is there two Sep. Units?

Answers

July 19, 2011
Jason
This is a spring loaded 1 piece design latch. Simply pull locking tab to fasten over post and spring holds tight. These are sold as each
1 answers

is there a pin with head for the latch to hook onto?

hacker as in sidehack, motocycle
north carolina
February 21, 2011

is there a pin with head for the latch to hook onto?

Answers

February 25, 2011
Waymon
Yes there is a latch stud included in the box.
1 answers

how big is this latch?

cj
ontario canada
June 18, 2011

how big is this latch?

Answers

June 21, 2011
QC
The measurment from the center of the hinge to the outside of the latch is 3 3/4"
1 answers

Thank you for your recent reply to my inquiry. It was unfortunatly lacking and franky insulting. I had asked about the dimensions of this latch. I have read the web site already and would would appreciate a response with more info than what is ALREADY on

June 21, 2011

Thank you for your recent reply to my inquiry. It was unfortunatly lacking and franky insulting. I had asked about the dimensions of this latch. I have read the web site already and would would appreciate a response with more info than what is ALREADY on

Answers

June 22, 2011
Jason
Latch is 1" wide by .059" thick. by 4" over all length Mounting plate is 2" wide at widest point and 2-7/16" long by .051" thick Comes with Stud(clip) bolt 10-24(3/16") x 1" long Washer is 1-1/4" od
1 answers

It appears that you will have to drill two holes for the latch and one for the stud. Will you also have to cut out for clearance of the spring loaded bolt?

Bob
May 19, 2015

It appears that you will have to drill two holes for the latch and one for the stud. Will you also have to cut out for clearance of the spring loaded bolt?

Answers

May 19, 2015
Eric
Expert
Yes there will have to be a hole for the spring loaded bolt to pass through to the back side of the material that you screw the latch to.
Page 1 of 1
