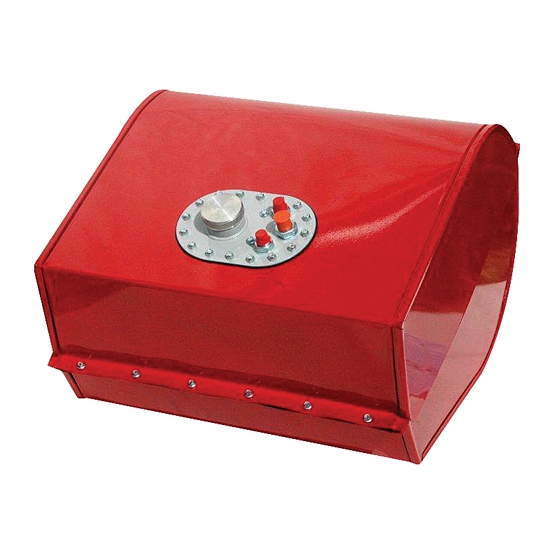

RCI 32 Gallon Teardrop Steel Fuel Cell

SAME DAY SHIPPING! Order within the next 14 hours 7 minutes and receive same day shipping

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Powder Coated
Color:
-
Fuel Cell Cap Style:
Flapper-Valve
Outlet Fitting:
-10AN
MFG. Part #:
-
Return Fitting:
-8AN
Garage Sale:
No
Safety Foam Included:
No
Pickup Tube Included:
Yes
Overall Height:
17.50
Overall Width:
24.75
Overall Length:
27.50
Capacity:
32.00
RCI 32 Gallon Teardrop Steel Fuel Cell

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

RCi Circle Track steel can fuel cells are manufactured with a cross-linked, high strength polyethylene bladder. Pickup hose is designed to pick up from right rear corner. All cans are spotwelded and powdercoated in your choice of Red, White or Black.

  • 32 gallon capacity
  • Includes a flapper on lid assembly
  • AN10 male pick-up (right rear)
  • AN8 male rollover vent
  • AN8 return

Customer Reviews

This product has no reviews.

Product Q&A

3 questions : 3 answers

1 answers

What is the depth, from top to bottom?

Dan
Medford, Oregon
September 29, 2012

What is the depth, from top to bottom?

Answers

October 01, 2012
Jason
The depth is 17-3/4 to approximately 13". The width is 24-3/4" and 26-1/4" long over all
1 answers

What are the length and width dimensions on this Thanks.

Thorpedo
Spring Creek, NV
October 17, 2011

What are the length and width dimensions on this Thanks.

Answers

October 18, 2011
Jason
The width is 24-3/4" and 26-1/4" long over all
1 answers

How wide is this fuel cell?

September 17, 2011

How wide is this fuel cell?

Answers

September 19, 2011
Jason
This cell is 24-3/4" wide
