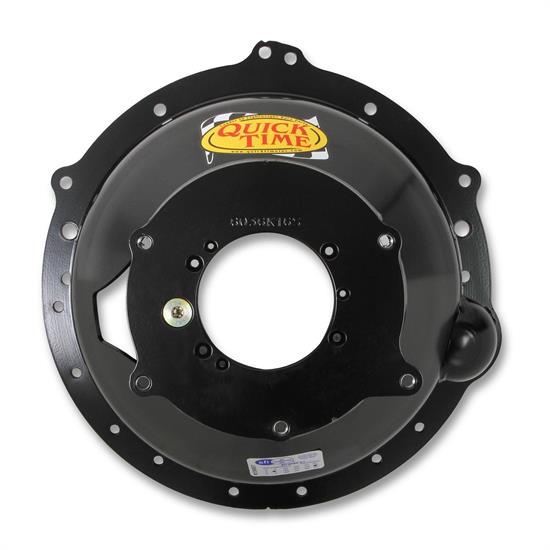

Quick Time RM-6036 LS1 Chevy Steel Bellhousing - Mechanical Linkage

SAME DAY SHIPPING!

Share by Email

From
To

Click image to enlarge

X

Details

Reviews

Q & A

What's in the Box

These strong, lightweight steel bellhousings are just the ticket for installing a manual transmission behind your favorite V8 engine. We're now offering them for LS-Series Chevys.

The compact design allows the bellhousings to fit in tight quarters and most will accommodate 10-1/2" clutches. These bellhousings are set up to use an original style clutch fork and release bearings with a Saginaw, Muncie or Richmond transmission, but can also be used with hyraulic release bearings.

  •     Height = 6.290
  •     Trans. Bore Ø = 4.685
  •     Engine = Chevy LS-1, LS-2, LS-3, LS-6, LS-7, LS-9
  •     Trans. = Richmond, Saginaw, Muncie, Bert, Brinn, Chevy TKO 500-600, Falcon, Jerico 4-5 Speed
  •     Clutch Ø = 11"
  •     Flywheel = 168 tooth or 153 tooth
  •     Weight = 22#
  •     Stock Shifter fork & throwout bearing
  •     Passed ALL SFI testing
  •     Pivot ball, full engine plate and grade 8 bolts included





Item Details

Saginaw, Muncie or Richmond transmission with stock clutch fork
