Quarter Master 191300 Ford Clutch and Flywheel Combo

Specs
Sold in Quantity:
Kit
Shaft Diameter:
1.13
Diameter:
10.40
Spline Count:
10
MFG. Part #:
191300
Garage Sale:
No

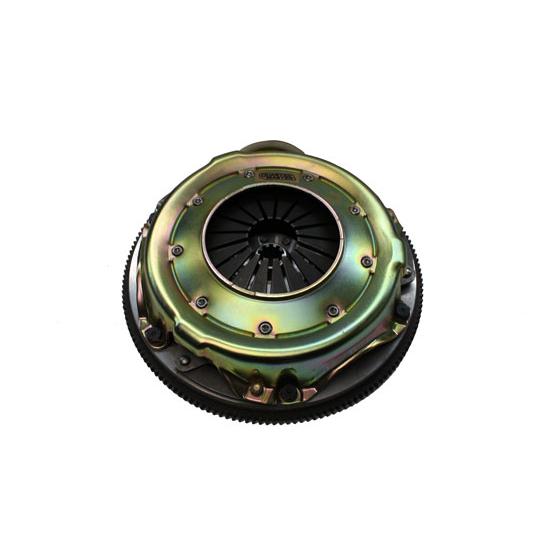

Quarter Master 191300 Ford Clutch and Flywheel Combo
Quarter Master 191300 Ford Clutch and Flywheel Combo

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Here is the ultimate S/B Ford Street Stock clutch! The 10.4" solid hub organic disc, lightweight steel-faced aluminum pressure plate, and steel flywheel combine to provide quick-revving performance with excellent holding capacity.
  • 157 tooth steel flywheel - 30.8 lbs
  • Fits 1-1/8" x 10 spline input
  • 10.4" Solid Hub Organic Friction Disc
  • Internal Balance Only
  • Lightweight aluminum pressure plate

Quarter Master Engineering & Design (PDF)

Note: For Race applications only - not intended for Street use.

Tech Tip:  When installing a new clutch, be sure to follow the manufacturer's instructions for correct set-up.  You should also replace the pilot bushing/bearing.

Tech Tip:  To extend the life of your expensive racing clutch you should not use it to load the car on or in your trailer.  The amount of slippage this causes is worse than a night of racing.



Item Details

1 1/8"-10 Spline
internal balance only

You may also be interested in:

Ram Clutches 1021 10.5 Inch Metallic Clutch Disc, 1-1/8 Inch 10-Spline
SKU-6051021


These 10-1/2" diameter 6 pad clutch discs feature a metallic friction compound and a flat face solid hub. For single disc style pressure plates. Weighs 3 lbs.

Tech Tip:  When installing a new clutch, be sure to follow the manufacturer's instructions for correct set-up.  You should also replace the pilot bushing/bearing.

Tech Tip:  To extend the life of your expensive racing clutch you should not use it to load the car on or in your trailer.  The amount of slippage this causes is worse than a night of racing.



Speedway Pull Type Slave Cylinder
SKU-91025604


Speedway pull type slave cylinder with 7/8" bore for clutch use. Works great with stock-style hydraulic throwout bearings or Ram Couplers. Has a 3/8"-24 inverted flare female inlet. Bleeder adapter and bleeder are included.

  • Ram shaft is 3/8" O.D.
  • Cylinder body is 4.09" long
  • Cylinder body is 1-7/16" O.D. at end by fittings
  • Cylinder body is 1-3/8" at opposite end of fittings

A 5/16” heim will fit both ends of cylinder (not included). Our heim part number is 1750202.

Note: For most multi-disc clutch set-ups we recommend the use of a smaller 3/4" bore master cylinder.

Ram Clutches 255 10.5 Inch Organic Clutch Disc, 1-1/16 Inch 10-Spline
SKU-605355


10-1/2", single clutch disc. Organic disc for single disc pressure plate, weighs 2.5 lbs. Full face design with solid hub.

Tech Tip:  When installing a new clutch, be sure to follow the manufacturer's instructions for correct set-up.  You should also replace the pilot bushing/bearing.

Tech Tip:  To extend the life of your expensive racing clutch you should not use it to load the car on or in your trailer.  The amount of slippage this causes is worse than a night of racing.



Ram Clutches 434 10-1/2 Inch Ford Pressure Plate, Nodular Ring 18 Lbs
SKU-605434


Ram clutches for 'stock clutch rule' classes give you unmatched performance and durability. These 10.5 inch diameter assemblies utilize a nodular iron pressure ring which provides a durable mating surface for the clutch disc. A 2800 lb. pressure spring provides increased static pressure over stock clutches.

If your rules require a full facing or sprung hub disc, the Ram 300 Series organic racing disc provides the best holding power of any organic disc available and adds only about 2 pounds to the total weight of the set.

All Ram street stock clutches are completely rebuildable by the factory.

Tech Tip:  When installing a new clutch, be sure to follow the manufacturer's instructions for correct set-up.  You should also replace the pilot bushing/bearing.

Tech Tip:  To extend the life of your expensive racing clutch you should not use it to load the car on or in your trailer.  The amount of slippage this causes is worse than a night of racing.
