Quarter Master 710100 Hydraulic Throwout Bearing for 7.25 Inch Clutch

SAME DAY SHIPPING! Order within the next 16 hours 11 minutes and receive same day shipping

Free Shipping Free Shipping
Quarter Master 710100 Hydraulic Throwout Bearing for 7.25 Inch Clutch

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

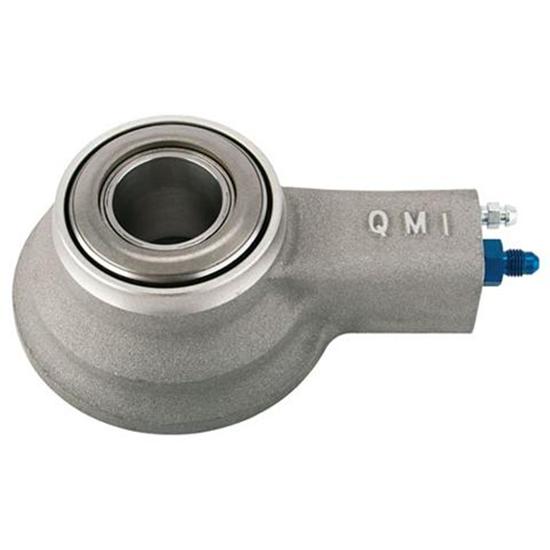

This floating hydraulic throwout bearing is designed for 7.25" clutches using a flexplate and button clutch combination. Bearing comes with enough fittings so that you could use a -3 AN or -4 AN supply line.

  • Bleed hose NOT included
  • Bleeder hole is threaded 5/16"-24
  • Collapsed height: 2.245"
  • Outside diameter: 4.400"
  • Inside diameter: 1.425"

910-710100 Instructions (PDF)

Learn more about hydraulic release bearings and how to properly install them by reading our tech article. How to Install a Hydraulic Throwout Bearing.

Customer Reviews

This product has no reviews.

Product Q&A

5 questions : 5 answers

1 answers

Will this throw out work with stock type clutches

7Guyer
August 20, 2014

Will this throw out work with stock type clutches

Answers

August 20, 2014
EricM
No this will not work on stock clutches. You will need a throwout bearing such as 91025610 or 60578125 for a stock clutch.
1 answers

Will this work with a T-56 Transmission? I have a Q/M 7.25 button three disc and a LS3 motor, Dropping in into a E46 M3, ANy hoot, Looking for a release bearing for a t-56 with this clutch

Rondawg
Phoenix, AZ, USA
April 27, 2014

Will this work with a T-56 Transmission? I have a Q/M 7.25 button three disc and a LS3 motor, Dropping in into a E46 M3, ANy hoot, Looking for a release bearing for a t-56 with this clutch

Answers

April 28, 2014
EricM
You will need to compare these critical dimensions to the needs of your combination in order to determine if this bearing will work for you. Sorry we do not have experience with that particular combination. Collapsed height: 2.245" Inside diameter: 1.425"
1 answers

Will this bearing work with saginaw transmission>?

roundtrack19
November 22, 2013

Will this bearing work with saginaw transmission>?

Answers

November 25, 2013
EricM
Yes this transmission works with most GM Saginaw car and light truck transmissions with 1-1/8" input shaft. To verify correct fit measure the bearing collar of your transmission and make sure that the 1.425" inside diameter of this throwout bearing is correct with your transmission.
1 answers

will this work with a tilton clutch?

dan the tow man
Bates city,MO
April 25, 2011

will this work with a tilton clutch?

Answers

April 28, 2011
Jason R.
This is designed for most brand 2 or 3 disc clutches 7.25" or 5.5"
1 answers

How do you adjust the throwout bearing?

Becca
Syracuse,NY
June 20, 2011

How do you adjust the throwout bearing?

Answers

June 21, 2011
Jason
We offer a shin kit, part #910710102, that should help with adjustment
Page 1 of 1

You may also be interested in:

Hydraulic Release Bearing Set-Up Tool
(Part #91381090)
                        Another Speedway exclusive -- makes hydraulic release bearing set-up as easy as 1-2-3. We all know what a pain it is to set the clearance on a hydraulic release bearing. With this handy little tool you will take the guess work and drudgery out of it.

Simply hold the tool up to the bellhousing and push the rod in until it touches the pressure plate fingers. Then turn the tool around and place it up to the transmission, and you can check your clearance.

Made of heavy steel construction with a black oxide finish, so this tool won't wear out or break. Numbers are laser etched.

Hydraulic Release Bearing Set-Up Tool Instructions (PDF)

Learn how to properly use this tool by reading our tech article How to Install a Hydraulic Throwout Bearing.



Quarter Master 710101 Hydraulic Throwout Bearing Seal Kit
(Part #910710101)
                        Sealing kit for floating hydraulic throwout bearing.

QM Throwout Bearing Instructions (PDF)

Quarter Master 710102 Hydraulic Throwout Bearing Shim Kit
(Part #910710102)
                        Quartermaster floating hydraulic throwout bearing shim kit. For 910-710100 or 910-710200.

QM Throwout Bearing Instructions (PDF)

Quarter Master 710105 Remote Bleeder Hose, -3 AN
(Part #910710105)


Bleeder hose for 910-710100 or 910-710200. The -3 AN line is 11" long. Tip to tip of fitting is 12".

Read more about bleeding hydraulic lines in our tech article, How To Bleed Your Brake Lines
