These premium aluminum bodied shocks are not a revalved race shock - they were built specifically for street rods. QA1 shocks feature 18 easily adjustable rebound settings to fine tune your hot rod's ride. Comes with steel coilover sleeves for the shock eyes to fit 1/2" bolts or 5/8" bolts. Will accept a standard 2-1/2" or 2-5/8" i/d coil over spring. Springs NOT included.
- Billet aluminum shock body
- 5/8" centerless ground, hard chrome plated, solid piston rod
- Deflective Disc Valving
- 3-step sealing system
- 18-position adjuster knob changes the rebound valving
- Allows suspension control in one easy-to-reach location
- 100% dyno tested and serialized
- Revalveable and rebuildable by QA1 authorized service centers
- 10-3/4" - 11-1/4" @ ride height
- 12-3/4" extended, 9-1/2" compressed
- Use 8" spring
- Width of Mount Bushings: 1.25"
Note: Shock lengths represent approximate mounted length at ride height.

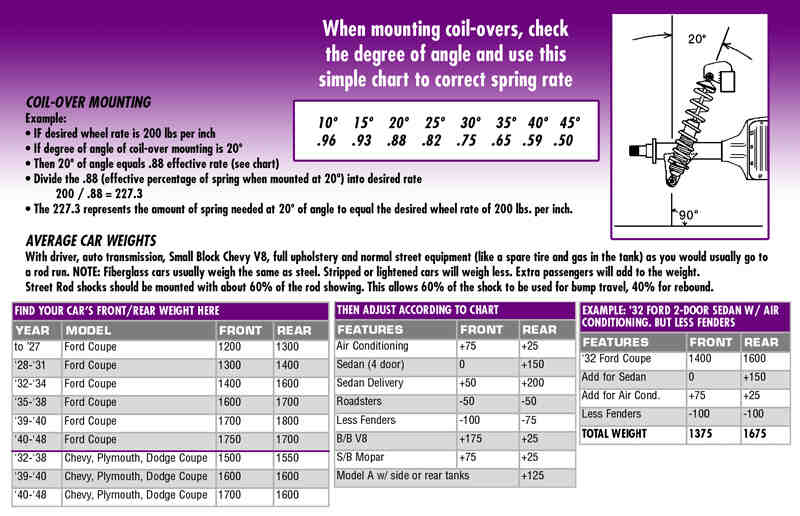

Coil Over Mounting Guide (GIF)
Coil Over Mount Illustration (Link)
10-3/4" - 11-1/4" @ ride height
12-3/4" ext. 9-1/2" comp. Use 8" spring.
