QA1 PCYML12T High Misalign Chromoly Heim Joint Rod Ends 3/4-16 LH Male

Specs
Sold in Quantity:
Each
Threads:
LH Male
Material Type:
Chromoly
Color:
Black
Finish:
Black Oxide
Thread Pitch:
3/4"-16
Center Hole to End of Shank:
2.63
Overall Length:
4.39
Hole Diameter:
0.7500
Outside Diameter:
2.00
Thread Length:
2.07
Bushing Length:
1.50
Bushing Diameter:
.75

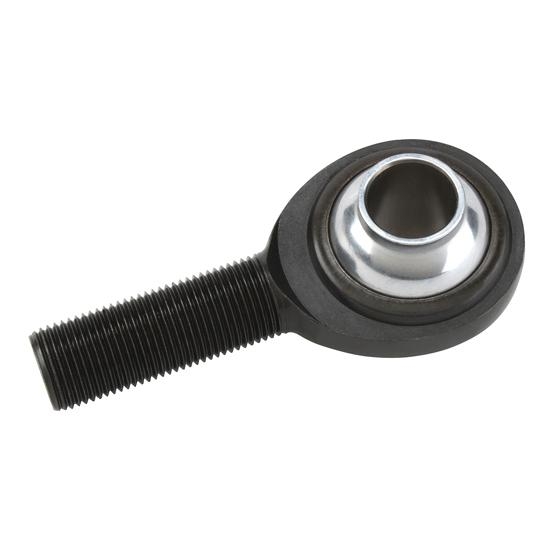

QA1 PCYML12T High Misalign Chromoly Heim Joint Rod Ends 3/4-16 LH Male
QA1 PCYML12T High Misalign Chromoly Heim Joint Rod Ends 3/4-16 LH Male
QA1 PCYML12T High Misalign Chromoly Heim Joint Rod Ends 3/4-16 LH Male

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

  • Heat treated chromoly alloy steel body
  • Functions with up to 64° of misalignment
  • PTFE self-lubricating lining
  • Black oxide coated for corrosion resistance
  • Sold individually

Item Details

T = 2", L = 3-3/8", W = 1-1/2"

Customer Reviews

This product has no reviews.

Product Q&A

0 questions : 0 answers

No questions have been asked.

You may also be interested in:

Precision Carbon Steel LH Male Heim Joint Rod Ends, 3/4 Inch
(Part #1750317)
                        Precision steel rod ends provide greater strength than our "standard" rod ends. They have close tolerance and have a 3 piece medium duty rod end. Carbon steel body, 5210 precision ground ball and feature a Teflon Kevlar race. Self lubrication teflon liner to seal out dirt and debris. Shank and hole are the same size.

Applications: Clutch, Brake, Steering & Suspension Components. Quieter, Smoother, & More Durable Than 2 Piece Rod Ends. Tight Tolerance of Kevlar Race Reduces "Slop" In Steering & Suspension.

ASSEMBLY TIP:
To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Precision Rod Ends Chart Application (GIF)

Aluminum Heim Joint Rod Ends, 3/4-16 LH Male
(Part #1171212L)


Aluminum rod ends have close tolerance, 3-piece, medium duty design. Hard anodized 7075-T6 aerospace quality aluminum body. Heat treated, 5210 precision ground ball with a Kevlar race. Self lubricating Teflon liner seals out dirt an debris

Applications: Designed for motorsports application where weight is critical. All of the strength & features of the Precision rod ends at half of the weight.

Assebly Tip:
  To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Aluminum Rod End Chart (GIF)

Pro-1 Chromoly Heim Joint Rod Ends, 3/4-16 LH Male
(Part #1750707)


These Pro-1 rod ends are general purpose, 2-piece, heavy duty rod ends. They feature a chromoly steel body and are black oxide coated to resist corrosion. Heat treated, precision ground ball without a race (metal to metal contact). Pro-1 ends will withstand a greater static load than our "Standard" or "Precision" rod ends.

Applications: Steering & suspension components on moderate to high horsepower applications.

Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Pro-1 Rod End Chart (GIF)

Chromoly Heim Joint Rod Ends, 3/4-16 LH Male
(Part #91002336)


Heat treated, 4130 chromoly steel body with hard chrome, heat treated ball to support heavy shock loads. Injection molded Kevlar/Teflon® liner seals out dirt and debris.

  • Kevlar/Teflon® race reduces slop & eliminates binding
  • Provides smooth & precise movement of steering & suspension
  • The ultimate in strength & durability

Applications: Steering & suspension for racing & high horsepower applications.

Chromoly Rod End Chart (GIF)

AFCO 10425 Aircraft Quality Heim Rod End, 3/4-16 LH Male
(Part #10610425)

  • Designed for high-stress usage
  • Ideal for panhard bar or drag components
  • Ball - 52100 steel, hard chrome plated
  • Race - Heat treated steel alloy, zinc plated
  • Body - Heat treated steel alloy, zinc plated
  • Radial Load - 28,000 lbs.
AFCO 10459 Chromoly Heim Rod End, 3/4-16 LH Male
(Part #10610459)

  • Chromoly body - 2 piece design
  • Designed for heavy duty applications
  • Rough conditions steering/offroad
  • Ball - 52100 steel hard chrome plated
  • Race - N/A
  • Body - 4130 chromoly
  • Radial Load - 25,000 lbs.

Item Details

Bore: 3/4"
Shank: 3/4"
QA1 PCYMR12T High Misalign Chromoly Heim Joint Rod Ends 3/4-16 RH Male
(Part #1750607)

  • Heat treated chromoly alloy steel body
  • Functions with up to 64° of misalignment
  • PTFE self-lubricating lining
  • Black oxide coated for corrosion resistance
  • Sold individually

Item Details

T = 2", L = 3-3/8", W = 1-1/2"
Steel Jam Nuts, 3/4 Inch-16 Left Hand NF Fine Thread, Pack/6
(Part #1756047-LH)


If you've got spherical rod ends on your vehicle, you'll probably need jam nuts. You might also need them for tie-rod ends or other types of fittings and connectors. Our jam nuts are made from premium steel (zinc-coated for corrosion prevention), and they're available with either right hand or left hand threads.

These steel fine thread jam nuts are for use with rod ends, heim joints, and clevis.

  • 3/4 Inch-16 NF Fine Thread
  • Sold in bags of six nuts.
  • Choose left or right thread.
Heavy Duty Aluminum Jam Nut, 3/4-16 LH
(Part #3159606)


These heavy duty jam nuts are made of 7075 aluminum alloy and are clear anodized for corrosion resistance. Fine thread for use with rod ends, heim joints, and clevis.

Sold each.

Item Details

1-1/8" hex
