QA1 PCYMR8T High Misalign Chromoly Heim Joint Rod Ends 1/2-20 RH Male

Specs
Material Type:
Chromoly
Color:
Black
Finish:
Black Oxide
Hole Diameter:
0.5000
Thread Pitch:
1/2"-20
Threads:
RH Male

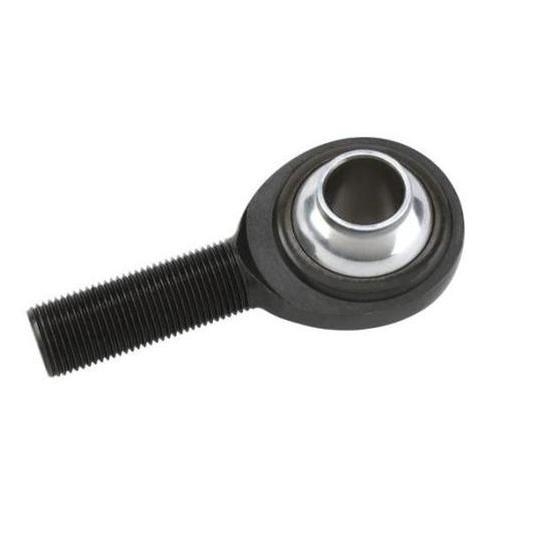

QA1 PCYMR8T High Misalign Chromoly Heim Joint Rod Ends 1/2-20 RH MaleQA1 PCYMR8T High Misalign Chromoly Heim Joint Rod Ends 1/2-20 RH Male
QA1 PCYMR8T High Misalign Chromoly Heim Joint Rod Ends 1/2-20 RH Male

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

  • Heat treated chromoly alloy steel body
  • Functions with up to 64° of misalignment
  • PTFE self-lubricating lining
  • Black oxide coated for corrosion resistance
  • Sold individually

Item Details

T = 1-5/8", L = 2-5/8", W = 1-1/4"
