QA1 Adjustable 11 Inch Coil-Over Shock Kit



                                                        Carrera Coil-overs, with their patented Hyper-Charging process, are among the finest coilovers in the industry. All pieces are beautifully chrome plated. Shocks feature 1/2" bearing ends installed (will also accept 5/8" bearing ends # 255-1818B available separately - see below) with 5/8" urethane bushings included. Available for rear axle applications (see chart).
Shock Eye Ring:  1-1/16" I.D. by 5/8" wide
Urethane Bushing Width Installed:  1-1/4"
Kit consists of:
(2) Chrome 1.63" steel body shocks
(2) Chrome coil-over springs
(2) Polished aluminum spring mounting hardware kits

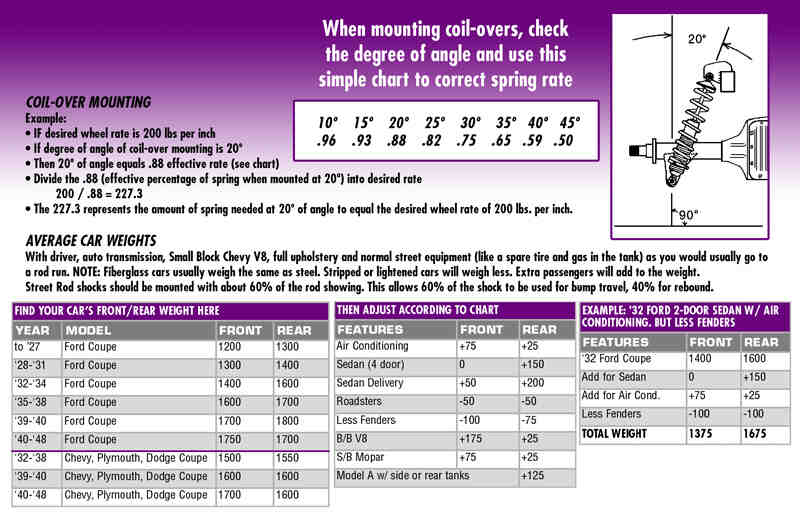

Coil-Over Mounting Guide (GIF)

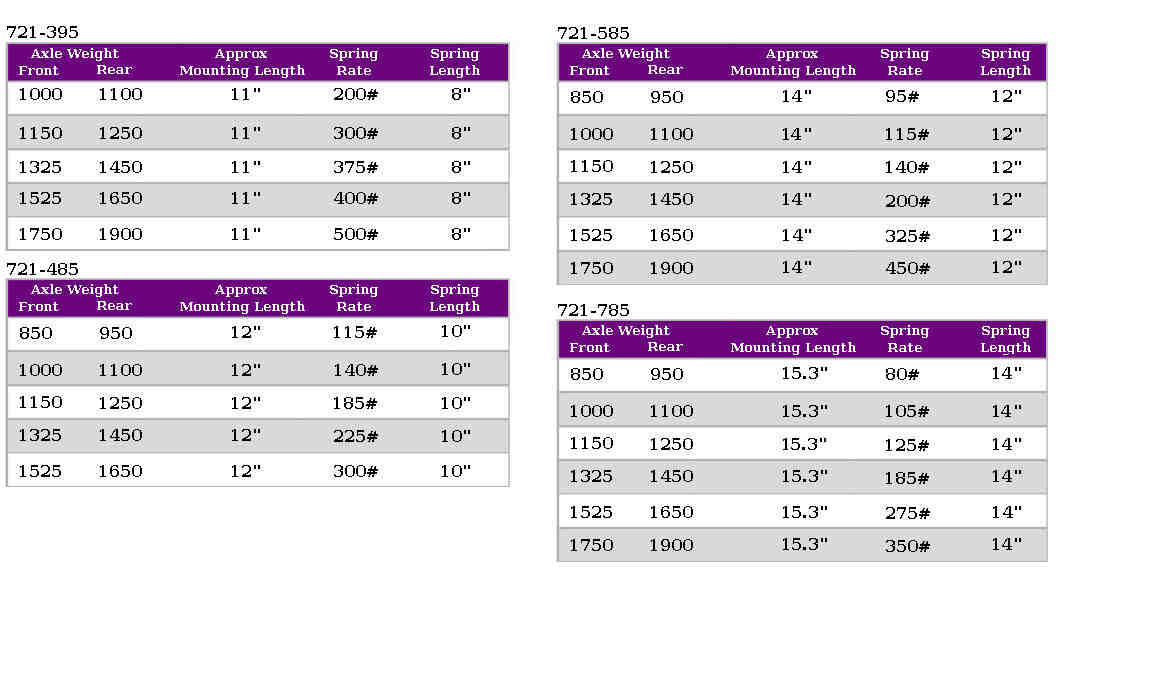

Rear Coil-Over Shock Chart (GIF)
Coil-over Illustration (Link)
Carrera Shock Specs Chart (Link)








These premium aluminum bodied shocks are not a revalved race shock - they were built specifically for street rods. QA1 shocks feature 18 easily adjustable rebound settings to fine tune your hot rod's ride. Comes with steel coilover sleeves for the shock eyes to fit 1/2" bolts or 5/8" bolts. Springs NOT included.
Billet aluminum shock body
5/8" centerless ground, hard chrome plated, solid piston rod
Deflective Disc Valving
3-step sealing system
18-position adjuster knob changes the rebound valving
Allows suspension control in one easy-to-reach location
100% dyno tested and serialized
Revalveable and rebuildable by QA1 authorized service centers
10-3/4" - 11-1/4" @ ride height
12-3/4" extended, 9-1/2" compressed
Use 8" spring
Width of Mount Bushings:  1.25"
Note: Shock lengths represent approximate mounted length at ride height.
Coil Over Mounting Guide (GIF)
Coil Over Mount Illustration (Link)







Carrera Street Rod Series coilovers are ideal for use with rear suspensions. Features beautifully chrome plated shocks and springs. The non-adjustable, gas pressurized and radial tuned shocks provide an excellent ride.
Each kit includes:
(1) Chrome 1.63" steel body shock
(1) Chrome 10" spring
(1) Polished aluminum spring mounting kit
Mounted Length:  12-3/8"
Compressed Length:  9-3/4"
Extended Length:  14-5/8"
Shock accepts 7/16" or 5/8" bolt for top bushing and 5/8" bolt in bottom bushing
Coil-Over Mounting Guide (GIF)
Carrera Spring Rate Chart (GIF)
Coil-Over Illustration (Link)







These premium aluminum bodied shocks are not a revalved race shock - they were built specifically for street rods. QA1 shocks feature 18 easily adjustable rebound settings to fine tune your hot rod's ride. Has 5/8" I.D. mounting eyes and includes 1/2" bushing. Sold as a pair.
Note: Shock lengths represent mounted length at ride height.

Coil-Over Chart (Link)
Coil-Over Mounting Guide (GIF)








These premium aluminum bodied shocks are not a revalved race shock - they were built specifically for street rods. QA1 shocks feature 18 easily adjustable rebound settings to fine tune your hot rod's ride. Has 5/8" I.D. mounting eyes and includes 1/2" bushing. Sold as a pair.
Note: Shock lengths represent mounted length at ride height.

Coil-Over Chart (Link)
Coil-Over Mounting Guide (GIF)








These premium aluminum bodied shocks are not a revalved race shock - they were built specifically for street rods. QA1 shocks feature 18 easily adjustable rebound settings to fine tune your hot rod's ride. This kit uses a 12" spring and available in 95,125,150, 175, 225, 250,  300, 375, 400, 450 and 500 pound. The mount length should be as close to  the middle of shock travel as possible. Ride height will depend on rate  of spring and vehicle weight.  Has 5/8" I.D. mounting eyes and includes 1/2" bushing. Sold as a pair.
This kit comes with the option of spring rate.
Choose from 95, 125, 150, 175, 225, 250, 275, 300, 350, 375, 400, 450 & 500.
The overall O.D. is 3-3/4"
Shock compressed length is 12.50"
Shock extended length is 18.75"
12" spring
5/8" I.D. mounting eyes and includes 1/2" bushing
Sold as a pair
Note: Shock lengths represent mounted length at ride height.

Coil-Over Chart (Link)
Coil-Over Mounting Guide (GIF)








Pro shocks new aluminum small body coil over shocks are 3 way  adjustable.  They are fitted with 2-1/2" chrome spring and aluminum coilover kit and make one of the cleanest coil overs on the market for your  street rod.  Each shock features urethane mounting bushings with both  1/2" and 5/8" mounting sleeves.
4” stroke  kit has a suggested installed height of 11-1/2” to 11-3/4”
Adjustment Instructions (GIF)







Pro shocks new aluminum small body coil over shocks are 3 way   adjustable.  They are fitted with 2-1/2" chrome spring and aluminum coilover kit and make one of the cleanest coil overs on the market for  your  street rod.  Each shock features urethane mounting bushings with  both  1/2" and 5/8" mounting sleeves.
5” stroke  kit has a suggested installed height of 13-1/4” to 13-1/2”
Adjustment Instructions (GIF)







Pro shocks new aluminum small body coil over shocks are 3 way    adjustable.  They are fitted with 2-1/2" chrome spring and aluminum coilover kit and make one of the cleanest coil overs on the market for   your  street rod.  Each shock features urethane mounting bushings with   both  1/2" and 5/8" mounting sleeves.
6” stroke  kit has a suggested installed height of 14-3/4” to 15”
Adjustment Instructions (GIF)
