QA1 TS801 GM Adjustable Rear Shocks

Specs
Sold in Quantity:
Each
Hole Diameter:
.750
Extended Length:
21.00
Compressed Length:
13.50
Shock Type:
Twin Tube
Adjustability:
Single Adjustable
Shock Body Material:
Aluminum
Shock Body Type:
Smooth
Shock Body Size:
Large Body
Notes
Includes 1/2" I.D. mounting bushing for lower eyelet.

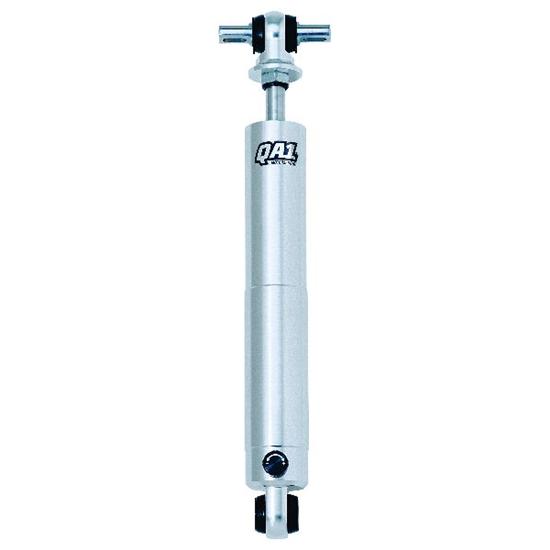

QA1 TS801 GM Adjustable Rear Shocks

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These aluminum-bodied QA1 Stocker Star Adjustable Rear Shocks bolt right in where your stockers were and give you twelve valving options to tune your ride and features external adjustment with the knob on the outside of the shock.

  • Easy, bolt-in installation
  • Deflective disc valving - increased valving response, control and consistency
  • On-the-car valving adjustment - no more removing shocks to adjust valving, simply turn the knob
  • 5/8” centerless ground, hard chrome plated piston rod - increased durability, eliminates piston rod flex
  • Forged aluminum body - lightweight, stronger than billet
  • Bright anodized body for a show-winning appearance
  • 3-step sealing system - exclusively engineered double lip seal with wiper eliminates seal drag and dirt intrusion
  • Dyno tested and serialized assures consistency in production and performance
  • Revalveable and rebuildable by QA1 Authorized Service Centers

Application

Due to deviations from the factory ride heights, it may be necessary to check the actual ride height of your particular application.

  • 1958-64 Impala
  • 1965-70 Impala
  • 1971-76 Impala/Caprice
  • 1994-96 Impala/Caprice
  • 1964-72 Chevelle A-Body
  • 1968-79 Nova
  • 1970-72 Monte Carlo
  • 1973-77 GM A-Body (Chevelle, Grand Am, Cutlass)
  • 1978-81 GM A-Body (Monte Carlo, Malibu, El Camino, Grand Prix, Cutlass)
  • 1982-88 GM G-Body (Monte Carlo, Regal, Cutlass, Grand Prix)

Many Stocker Stars can be converted to different mounting applications.

Notes

  • Application: Single Adjustable
  • Shock Type: Rear Shocks
  • Upper Mount: T-Bar
  • Lower Mount: Eyelet
  • I.D. of eye bushing is 3/4"
  • O.D. of shock body at widest point is 1.949"



Customer Reviews

Rated 5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

TurboEddie
Verified Purchaser
Compton, CA, USA
Product Rating

Great shocks superior quality

October 11, 2013
Installed these on my 86 Buick Ttype love the ride
Pros:
  • Easy to adjust
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

mike
Verified Purchaser
walnut creek, ca
Product Rating

excellent choice

March 30, 2012
great shock, fully adjustable. smooth ride on street. agressive around corners. reccomebd for pro touring projects.
Pros:
  • Comfortable Ride
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
7211661

Product Q&A

2 questions : 2 answers

1 answers

Can The TS801 be turned into a coil- over and if so what parts are needed ? Rear single adjustable QA-1 shock.

Sunbuick
Louisville, KY, USA
December 17, 2014

Can The TS801 be turned into a coil- over and if so what parts are needed ? Rear single adjustable QA-1 shock.

Answers

December 18, 2014
EricM
No this shock can not be converted to a coil over.
1 answers

Why does the T-Bar have a slot and not holes like most shocks ? I own a 71 Chevelle and wish to get QA1 TS801 but have notice that the T-Bar has a slot and instead of holes like my old shocks. Also the hardware that comes with these shocks are the upper bolts and are 9/16" and my car has 1/2". With QA1 having slots instead of holes would it be more likely for the shock to move?

Chevelle71
Sunnyvale , Ca
May 26, 2014

Why does the T-Bar have a slot and not holes like most shocks ? I own a 71 Chevelle and wish to get QA1 TS801 but have notice that the T-Bar has a slot and instead of holes like my old shocks. Also the hardware that comes with these shocks are the upper bolts and are 9/16" and my car has 1/2". With QA1 having slots instead of holes would it be more likely for the shock to move?

Answers

May 27, 2014
EricM
It has slots to fit more applications. Once bolted tightly in place rest assured no movement will occur.
Page 1 of 1
