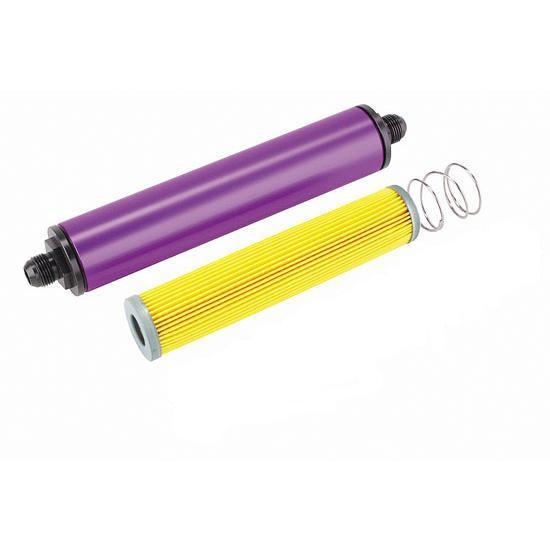

Purple 10 Inch Aluminum Fuel Filter, Paper Element

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Aluminum
Overall Length:
11.13
Color:
Purple
Sold in Quantity:
Kit
Finish:
Anodized
Tube O.D.:
1.98
Tube Length:
9.13
Fuel Type:
Gasoline
Notes
Includes paper element filter (7.75" x 1.61").
Purple 10 Inch Aluminum Fuel Filter, Paper Element
Purple 10 Inch Aluminum Fuel Filter, Paper Element

Click image to enlarge

Speeday Motors Logo
X
Purple 10 Inch Aluminum Fuel Filter, Paper Element

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

High flow design offers excellent performance for all racing applications. Purple anodized aluminum housing with a replaceable paper element. For use with gasoline only. Not compatible with ethanol fuel.

Choose AN inlet/outlet sizes needed: AN6, AN8, AN10, AN12.

You may also be interested in:

Universal Filter Mounting Bracket
                        New design allows secure mounting on any type of tubing - CNC machined aluminum, purple anodized. Fits both round and square frame tubing. Designed for our fuel filters with 2" O.D. housing.

Fuel Filter Mounting Bracket


These fuel filter mounting brackets are CNC machined aluminum. Available in 1-3/8", 1-1/2", or 1-3/4" round tubing.

These brackets are designed to be used with our filters. Hole is 2" inner diameter.

Purple 10 Inch Aluminum Fuel Filter, Stainless Element
                        High flow design offers excellent performance for all racing applications. Purple anodized aluminum housing with a washable and reusable 45 micron stainless steel element. For use with both alcohol and gasoline.

Choose AN inlet/outlet sizes needed: AN6, AN8, AN10, AN12.

NOT compatible with ethanol (E85).

Paper Fuel Filter Element for 10 Inch Filter


Paper element to fit our 2" x 10" aluminum filter bodies.

This element should not be used with alcohol. Paper elements are so efficient in separating water from fuel that "icing" or blockage can occur with alcohol. Stainless elements should be used with alcohol.

NOTE: Spring and O-rings are not included with filter element and are shown for assembly reference only.

Fuel Filter Configurations (GIF)

Black 10 Inch Aluminum High Flow Fuel Filter, Paper Element
                        High flow design offers excellent performance for all racing applications. Black anodized aluminum housing with a replaceable paper element. For use with gasoline only. Not compatible with ethanol fuel.

Choose AN inlet/outlet sizes needed: AN6, AN8, AN10, AN12.

OTR 7-7/8 Inch Stainless Steel Fuel Filter Element
                        By simply replacing and/or cleaning your filter elements  regularly, you    can avoid costly repairs to your fuel system and ensure  peak engine    performance. These elements can be used with gas or alcohol and are   easily cleanable and reusable.
  • Safe for use with e85, methanol, race gas, or pump gas
  • Stainless steel construction
  • Bonded ends
  • 140 micron screen
