Professional Products 52031 Power Plus Hurricane 57-95 SB Chevy Intake

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Sold in Quantity:
Each
Finish:
Natural
Intake Manifold Type:
Single Plane
Carburetor Quantity:
One
Carburetor Flange Type:
4-Barrel Square Bore
MFG. Part #:
52031
Overall Height:
6.06
Mounted Height:
5.12

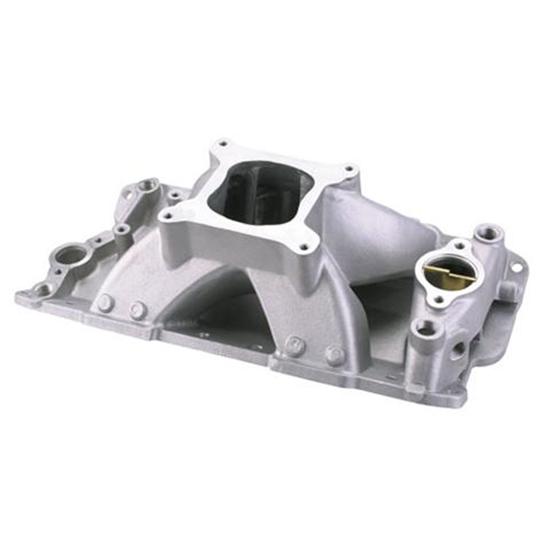

Professional Products 52031 Power Plus Hurricane 57-95 SB Chevy Intake

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

No other performance intake manifold on the market is available with all the features and benefits found in the Power+Plus High Performance Racing Manifold.  These 360° manifolds feature dual distributor hold downs for Chevy, four corner water outlets, and line of sight port configuration. They also have extended port dividers, thermostat recess, and an accessory bracket boss and tapped hole. There is an air gap under the front water crossover for extra cooling and an extra tapped water port.

These manifolds have permanent mold castings for accurate port placement, tighter grain castings, and less porosity. They have nitrous bosses, measure 5.12" from carb base to bottom of manifold, and are available in satin finish or polished (the area under the intake runners is not polished). RPM range is 3000-7500 RPM.

Dyno Chart (PDF)

910-11280 Instructions (PDF)

Customer Reviews

Rated 4 out of 5 by 3 reviewers.
RATING BREAKDOWN
3 reviews
5 Stars
1
4 Stars
1
3 Stars
1
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Dartman
Verified Purchaser
Floral City, FL

Excellent design

August 21, 2011
This manifold is equal or better than those of competitors. The deep plenum and ample runner volumes are efficient at higher RPMs. I especially appreciate the water outlets at the rear so coolant can be transferred to the thermostat housing thereby allowing more equal cylinder temperatures. Also, it is easy to port match.
Pros:
  • Increases Power
  • Improves Engine Efficiency
  • Easy To Install
  • Lightweight
  • Durable
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

spiderman
Verified Purchaser
oregon

rough casting inside

January 21, 2011
Race car
Pros:
  • Increases Power
  • Easy To Install
  • Durable
  • Lightweight
  • Improves Engine Efficiency
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Whitey
Phoenix, AZ

Not a bad product for the price.

February 10, 2010
Great manifold for the price. The extra water ports are nice. It's a fairly rough casting. As expected with all hotrod parts there's going to be a little clean up needed to make it perfect. All in all it was worth the money to me.
Pros:
  • Good price
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

7 questions : 7 answers

1 answers

Converting 1990 Chevy TBI to carburation (600CFM Edlebrock) Will this manifold work for my conversion and will the added water ports solve my excess engine heat problems?? I am an amateur mechanic and did a lot of work on older chevy motors - 1965 and earler - these newer motors and TBI are totally out of my normal range of knowledge - appreciate all the info you can provide.

87hunter
Yoakum, TX 77995, USA
January 18, 2015

Converting 1990 Chevy TBI to carburation (600CFM Edlebrock) Will this manifold work for my conversion and will the added water ports solve my excess engine heat problems?? I am an amateur mechanic and did a lot of work on older chevy motors - 1965 and earler - these newer motors and TBI are totally out of my normal range of knowledge - appreciate all the info you can provide.

Answers

January 19, 2015
EricM
Yes this intake will bolt onto your 1990 TBI engine but with this being an open plenum intake with a 3000 to 7500 RPM range it would certainly not be a top pick for your application. Intake manifolds 91011265 or 91011260 (w/ EGR) will also fit your engine and be a much better design for your stock engine in a pickup. These manifolds also have the water ports at the rear if you would like to add some cooling lines. I would not expect a large change in coolant temperature from adding these lines, especially for a street driven engine. Your engine probably has something causing it to run hot.
1 answers

will a holley dominator fit on this intake?

rstrait69
Michigan, USA
August 06, 2014

will a holley dominator fit on this intake?

Answers

August 07, 2014
EricM
No a Holley 4500 series Dominator carburetor will not bolt on to this intake. This is for a 4150 carburetor. You would need an adapter to put a Dominator on it.
1 answers

Is the 52031 identical to the Edelbrock 2925 I'm using this intake on a Open Sportsman 358 Dirt Modified. I can not see any differences and I have a 52031. If I could save a few hundred bucks that would be great.

ryky
Philadelphia
March 13, 2014

Is the 52031 identical to the Edelbrock 2925 I'm using this intake on a Open Sportsman 358 Dirt Modified. I can not see any differences and I have a 52031. If I could save a few hundred bucks that would be great.

Answers

March 13, 2014
EricM
There is a fair amount of difference between this intake and an Edelbrock 2925 Super Victor. The biggest difference is the plenum shape and runner design. This intake is much closer in design to the GM Bowtie intake manifold. With all that being said this intake will typically give comparable performance to the Edelbrock 2925.
1 answers

Will this intake fit on a 1992 Chevy 350? The intake we have now hits on the lip of the heads and won't set down the whole way

4sracing
October 09, 2013

Will this intake fit on a 1992 Chevy 350? The intake we have now hits on the lip of the heads and won't set down the whole way

Answers

October 09, 2013
Jason
The power plus hurrincan intake is listed to fit 1957-95 small block chevy standard port location 23 degree heads including cast iron²Bowtie, Dart Iron Eagle, World Products and most aluminum after market 23 degree heads. If your engine has '87-'95 cast iron heads, and your new manifold has four slotted holes for the four center attachment bolts, you must insert the supplied aluminum adapters into the slotted holes.
1 answers

well this product fit a 94 siera with a throtle body injected 305ci v8

August 19, 2011

well this product fit a 94 siera with a throtle body injected 305ci v8

Answers

August 22, 2011
John
This intake manifold can be used as a replacement manifold when converting from throttle body injection to a carburetor on small block Chevy engines up through 1995. It will accept the standard square bolt pattern Holley and Edelbrock four barrel carburetors.
1 answers

I am looking for a diagram to explain the 4 3/8 port holes, which to use for vacuum etc, thanks

Larry the Newbir
Chicago
September 15, 2015

I am looking for a diagram to explain the 4 3/8 port holes, which to use for vacuum etc, thanks

Answers

September 15, 2015
Eric
Expert
This intake manifold does not have any ports for vacuum. If you need one you will need to drill and tap the manifold for vacuum ports. There are some extra water ports in this manifold which are sometimes used on high performance engines for increased cooling. If they are not necessary in your application then you can simply plug off the extra water ports.
1 answers

Hi: Do they make an intake to replace TPI on 350 gm motors?

N/A
Fayetteville,Georgia
January 13, 2016

Hi: Do they make an intake to replace TPI on 350 gm motors?

Answers

January 14, 2016
Eric
Expert
This intake will fit Chevrolet engines up to 1995 including Camaro and Corvette TPI engines as well as car and pickup TBI engines. If you have a 1996 to 1999 Vortec engine you would need intake part number 91011295.
Page 1 of 1
