Professional Products 52030 Power Plus Hurricane 57-95 SBC Intake-Pol.

SAME DAY SHIPPING! Order within the next 14 hours 16 minutes and receive same day shipping

Specs
Material Type:
Aluminum
Overall Height:
6.06
Sold in Quantity:
Each
Finish:
Polished
Mounted Height:
5.12
MFG. Part #:
52030
Intake Manifold Type:
Single Plane
Carburetor Quantity:
One
Carburetor Flange Type:
4-Barrel Square Bore
Professional Products 52030 Power Plus Hurricane 57-95 SBC Intake-Pol.
Professional Products 52030 Power Plus Hurricane 57-95 SBC Intake-Pol.

Click image to enlarge

Speeday Motors Logo
X
Professional Products 52030 Power Plus Hurricane 57-95 SBC Intake-Pol.

Details

Reviews

Q & A

What's in the Box

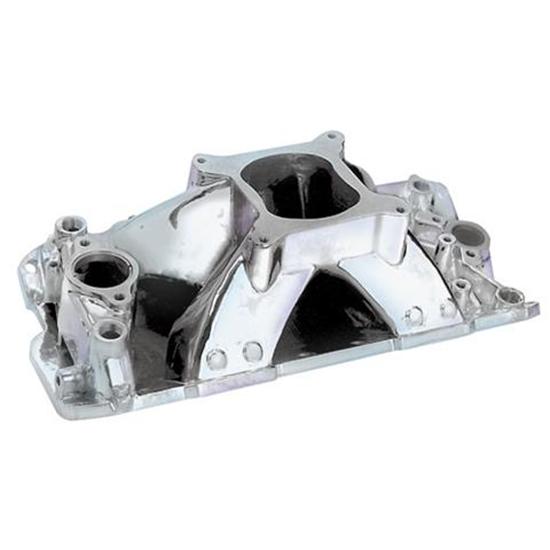

No other performance intake manifold on the market is available with all the features and benefits found in the Power+Plus High Performance Racing Manifold.  These 360° manifolds feature dual distributor hold downs for Chevy, four corner water outlets, and line of sight port configuration. They also have extended port dividers, thermostat recess, and an accessory bracket boss and tapped hole. There is an air gap under the front water crossover for extra cooling and an extra tapped water port.

These manifolds have permanent mold castings for accurate port placement, tighter grain castings, and less porosity. They have nitrous bosses, measure 5.12" from carb base to bottom of manifold, and are available in satin finish or polished (the area under the intake runners is not polished). RPM range is 3000-7500 RPM.

Dyno Chart (PDF)

910-11290 Instructions (PDF)
