Pro Shocks SM500 Pro Street Rod Shock, 12 Inch Ride Height

SAME DAY SHIPPING! Order within the next 3 hours 32 minutes and receive same day shipping

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Chrome
Hole Diameter:
.500
Extended Length:
14.500
Compressed Length:
9.625
Shock Type:
Mono Tube
Shock Eyelet Width:
1.375
Adjustability:
Non-Adjustable
Shock Body Material:
Steel
Shock Body Type:
Smooth
Shock Body Size:
Small Body

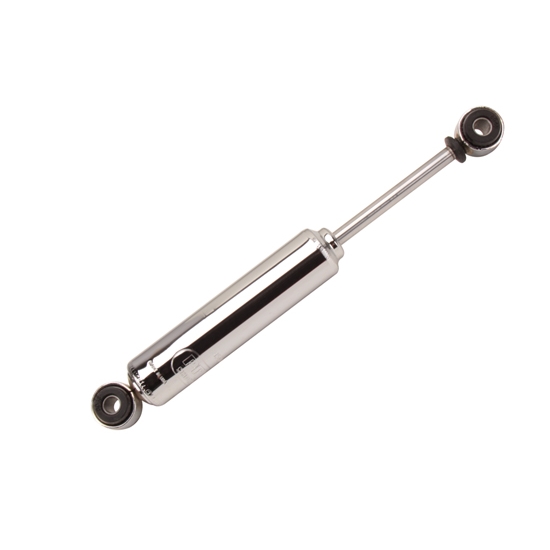

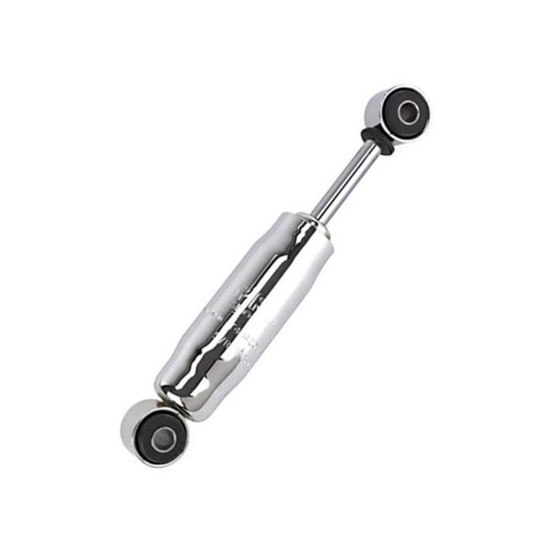

Pro Shocks SM500 Pro Street Rod Shock, 12 Inch Ride Height
Pro Shocks SM500 Pro Street Rod Shock, 12 Inch Ride Height

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Polished, chrome plated steel body shocks with 5/8" I.D. urethane bushings. Includes steel sleeves for use with 1/2" mounting hardware.

Note: Not for use with coil-over springs.

Pro Street Rod Shock Chart (GIF)

Item Details

Ride Height Mounted Length - 12"
