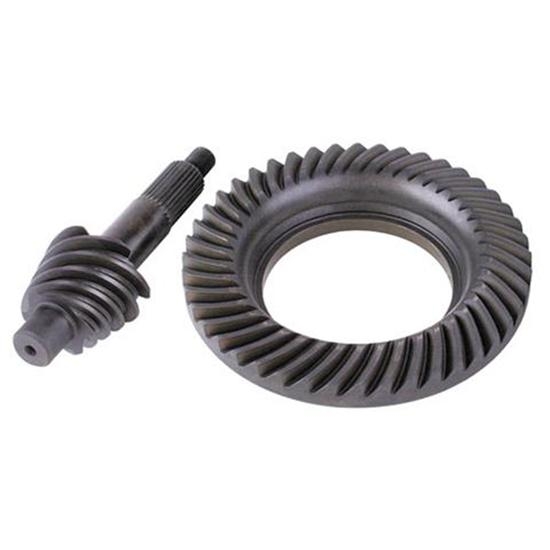

Pro Lightened 9 Inch Ford Ring & Pinion, 5.25 Gear Ratio

SAME DAY SHIPPING! Order within the next 4 hours 28 minutes and receive same day shipping

Pro Lightened 9 Inch Ford Ring & Pinion, 5.25 Gear Ratio
Pro Lightened 9 Inch Ford Ring & Pinion, 5.25 Gear Ratio

Click image to enlarge

Speeday Motors Logo
X
Pro Lightened 9 Inch Ford Ring & Pinion, 5.25 Gear Ratio

Please NOTE the following about this product:

  • This product is discontinued.

Details

Reviews

Q & A

What's in the Box

We also offer standard gears from 3.50 to 6.50 ratios on our site. See 91919350.

Note:  Circle track racing applications require a minimum of 4 qts. of rear end lube.  Using less than this amount will lead to immediate pinion bearing failure.





You may also be interested in:

Lubrication Engineers SAE 140 Weight Gear Oil, 1 Gallon


Whether you're running a stock flattie and rearend or hopped-up overhead and quick change, you need to run a good gear lube. Remember that your rearend was designed fifty plus years ago and needs all the help it can get. The biggest improvement you can give it is a lubricant that will allow the gears to survive the highway speeds that cars see today. L.E. gear oil is what we use in our 350 mph streamliner, that uses a V-8 quick change, without failure. The "red stuff" provides superior lubrication for long gear life. You can't win if you don't finish. We suggest 90 weight for the street and 140 weight for extreme uses.

  • Formulated using blends of high quality paraffinic and synthetic base fluids
  • Contains a highly shear stable tackiness
  • Unique blend of base fluids and thermally stable EP additives
  • Separates readily from water
  • Contains non-silicone defoaming additives
  • Contains no solids
  • Contains DUOLEC LE's proprietary dual acting liquid wear-reducing and extreme pressure additive

LE Gear Oil Data Sheet (PDF)

Assembly Stand for 9 Inch Ford Differential
                        Mount this assembly stand to your work bench (or engine stand) and stop wrestling with the third member every time you need to replace a gear set or spool. Saves you time and energy!  Rotates 360° for total access to your assembly.

9 Inch Ford Pro Ring & Pinion Setup Tool Set
                        The most accurate 9" Ford ring and pinion tool available. It uses the same bearing the carrier uses to insure proper center line to pinion measurement.  Does not assume that the cap is on the center as other tools do.

Comes complete with indicator to set back lash, wooden storage box and instructions on proper usage.

910-82725 Instructions (pdf)

Aluminum 9 Inch Ford Daytona Pinion Support


This forged aluminum pinion support is far superior to the original cast iron model. This pinion support uses a standard Ford 9" front pinion bearing and the Daytona style pinion bearing on the rear.

Bearings and races sold seperately.

Timken bearing and race numbers (for reference only):

  • M88048 Front pinion bearing
  • M88010 Front pinion race
  • HM89443 Rear Daytona pinion bearing
  • HM89410 Rear Daytona pinion race
Ford 9 Inch Steel Full Spool


Lightweight and standard steel Ford 9" full spools are available with 28 or 31 splines. Standard steel spool weighs 8.7 lbs. (28 Spline) & 8.0 lbs. (31 Spline).  The lightweight steel spool weighs 6.2 lbs. (28 Spline) & 6.1 lbs. (31 Spline)

NOTE: All Ford 9" full spools use overhaul kit #919-0950-31, even if they are a 28 spline spool.  The 919-0950-31 contains the large I.D. standard O.D. carrier bearings and pinion bearings.

If you are using the H.D. nodular iron center section which use the large diameter carrier bearings, order kit # 919-0950-31s, which also includes the large pinion bearings for use with the Daytona pinion support.
9 Inch Ford Rear End Overhaul Kit
                        This 9" Ford overhaul kit includes: pinion pilot, pinion shaft, pinion nut, pinion seal, gasket, shims, crush collar, sealant, gear marking grease, brush and Loctite. Ring gear bolts not included.

NOTE: All Ford 9" full spools use overhaul kit 9190950-31, even if they are a 28-spline spool. The 9190950-31 contains the large I.D. standard O.D. carrier bearings and pinion bearings needed for use with our full spools.

If you are using the H.D. nodular iron center section which uses the large diameter carrier bearings, order kit 9190950-31s, which also includes the large pinion bearings for use with the Daytona pinion support.

9" Ford Carrier Bearing Chart (GIF)  - Double check your bearing p/n.

Ford 9 Inch Megalite Steel Full Spool, 31-Spline
                        These Ford 9" megalite steel full spools weigh just 5.49 lbs.

Comparison spool weights:

  • Aluminum - 5.0 lbs.
  • Lite Steel - 6.1 lbs.
  • Standard Steel - 8.0 lbs.
  • Stock carrier with mini spool - 13.7 lbs.

Note: All Ford 9" full spools use overhaul kit 9190950-31. The 9190950-31 contains the large I.D. standard O.D. carrier bearings and pinion bearings needed for use with our full spools.

If you are using the H.D. nodular iron center section which uses the large diameter carrier bearings, order kit 9190950-31s, which also includes the large pinion bearings for use with the Daytona pinion support.

Ford 9 Inch Megalite Steel Full Spool, 28-Spline
                        These Ford 9" megalite steel full spools weigh just 5.55 lbs.

Comparison spool weights:

  • Aluminum - 5.0 lbs.
  • Lite Steel - 6.0 lbs.
  • Standard Steel - 8.9 lbs.
  • Stock carrier with mini spool - 13.7 lbs.

Note: All Ford 9" full spools use overhaul kit 9190950-31, even if they are a 28-spline spool. The 9190950-31 contains the large I.D. standard O.D. carrier bearings and pinion bearings needed for use with our full spools.

If you are using the H.D. nodular iron center section which uses the large diameter carrier bearings, order kit 9190950-31s, which also includes the large pinion bearings for use with the Daytona pinion support.

Pinion Nut for 9 Inch Ford
                        Thread pitch on this pinion nut is 3/4"-20. Fits 8" and 9" Ford rear axles.

Ring Gear Bolts for 9 Inch Ford, 10 PK
                        Ring gear bolts for 9" Ford. Pack of ten.

Fel-Pro Gaskets P2302 9 Inch Ford Pumpkin Gaskets


Lose the RTV silicone! With Fel-Pro reuseable third member housing gaskets, you don’t have to worry about applying an RTV and waiting for it to set up to seal. In addition, installing precut Fel-Pro gaskets helps eliminate the risk of contaminating the differential housing with RTV.

Gaskets have a steel core and non-stick coating.
