Pro-1 Chromoly Heim Joint Rod Ends, 1/2-20 RH Male

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Threads:
RH Male
Material Type:
Chromoly
Color:
Black
Finish:
Black Oxide
Thread Pitch:
1/2"-20
Hole Diameter:
0.5000

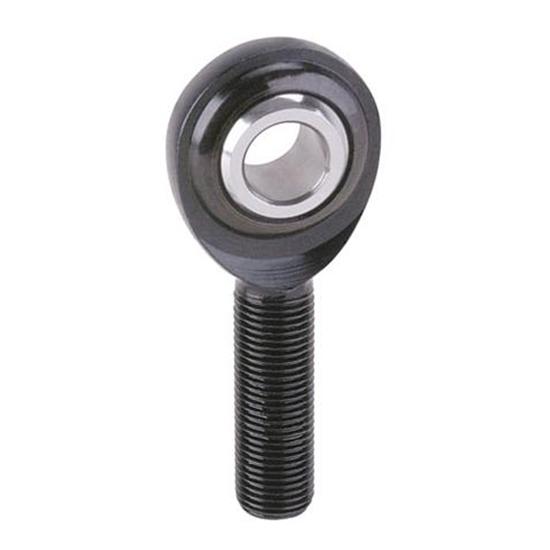

Pro-1 Chromoly Heim Joint Rod Ends, 1/2-20 RH Male

Click image to enlarge

Details

Reviews (2)

Q & A (3)

What's in the Box

Info

These Pro-1 rod ends are general purpose, 2-piece, heavy duty rod ends. They feature a chromoly steel body and are black oxide coated to resist corrosion. Heat treated, precision ground ball without a race (metal to metal contact). Pro-1 ends will withstand a greater static load than our "Standard" or "Precision" rod ends.

Applications: Steering & suspension components on moderate to high horsepower applications.

Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Pro-1 Rod End Chart (GIF)

Customer Reviews

Rated 5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

lokota44
Verified Purchaser

great product

September 05, 2014
great product,great price,very fast shipping. I will be ordering more.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

jimish
Verified Purchaser
Reedley, CA

Beautiful Heim

April 12, 2012
Using it for a hydraulic shock arm
Pros:
  • Beautiful proportions
  • Finished beautifully
  • Works silky smooth
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 3 answers

1 answers

how long is the heim from the center of the hole to the end of the threaded rod and the over all length for radius rods on a rear end

triumphgt6
Ohio
November 22, 2014

how long is the heim from the center of the hole to the end of the threaded rod and the over all length for radius rods on a rear end

Answers

November 24, 2014
EricM
This is 2.438" from center of the hole to end of the threads. Total length is 3.094"
1 answers

Hello , do u have the length of this product? Thanks

August 17, 2011

Hello , do u have the length of this product? Thanks

Answers

August 18, 2011
Jason
The over all length is 3-1/8". Length from end of threaded end to center of ball is 2.438". Length of threads is 1.50".
1 answers

2 questions, what is the length of the bolt-hole in the ball? The distance from the same bolt hole to the furthest outside NON-threaded end?

nick
January 13, 2016

2 questions, what is the length of the bolt-hole in the ball? The distance from the same bolt hole to the furthest outside NON-threaded end?

Answers

January 14, 2016
Eric
Expert
This rod end has a ball width of .625". The OD of the body is 1.312" so from the center of the ball to the outside of the body is .656"
Page 1 of 1
