Pro-1 Chromoly Heim Joint Rod Ends, 5/8-18 RH Male, 1/2 Inch Hole

Specs
Material Type:
Chromoly
Color:
Black
Sold in Quantity:
Each
Finish:
Black Oxide
Hole Diameter:
.50
Thread Pitch:
5/8"-18
Threads:
RH Male
Garage Sale:
No

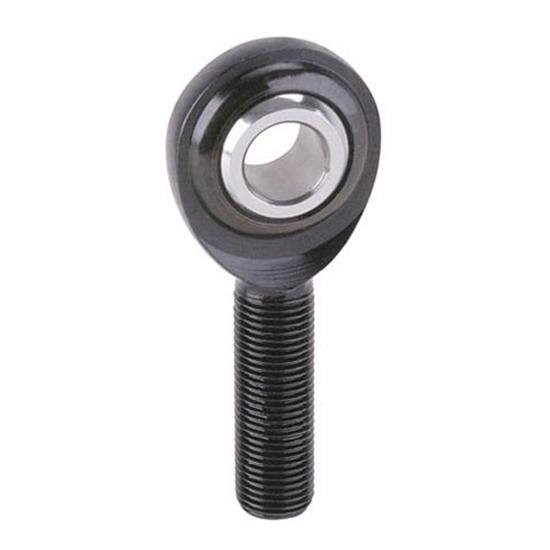

Pro-1 Chromoly Heim Joint Rod Ends, 5/8-18 RH Male, 1/2 Inch Hole

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These Pro-1 rod ends are general purpose, 2-piece, heavy duty rod ends. They feature a chromoly steel body and are black oxide coated to resist corrosion. Heat treated, precision ground ball without a race (metal to metal contact). Pro-1 ends will withstand a greater static load than our "Standard" or "Precision" rod ends.

Applications: Steering & suspension components on moderate to high horsepower applications.

Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Pro-1 Rod End Chart (GIF)

Customer Reviews

Rated 4.5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
1
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Sonny9111
Verified Purchaser
Fresno, CA, USA
Product Rating

Pro-1 Chromoly Heim Joint Rod

September 14, 2014
You guys are the best ........... I get My parts fast and the quality its right on.....The Louts Super 7 is ready to race..........
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

DON the Rod Builder
Verified Purchaser
Ocala, Florida
Product Rating

Alternative for radius rod connection

February 23, 2012
With various frame / chassis widths, the Speedway tube axles which come with pre-welded radius rod brackets are not always located where the radius rod clevis end is angled where the heim connection meets the frame connection, therefore by drilling out the 3/8" radius rod clevis brackets to 1/2", I was able to bolt the 5/8 X 1/2 heim to the outside of the axle/radius rod bracket which gives a more variable angle ability to connect heim end to frame........
Pros:
  • Good alernative use
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 1 answers

What is the width?

1 answers
bubba1
November 04, 2013

What is the width?

Answers

November 04, 2013
Jason
The overall width of the housing is 1.500". The ball is .625" in length.
Page 1 of 1
