Pro-1 Chromoly Heim Joint Rod Ends, 5/8-18 RH Male

SAME DAY SHIPPING! Order within the next 7 hours 21 minutes and receive same day shipping

Specs
Material Type:
Chromoly
Color:
Black
Finish:
Black Oxide
Hole Diameter:
0.6250
Thread Pitch:
5/8"-18
Threads:
RH Male

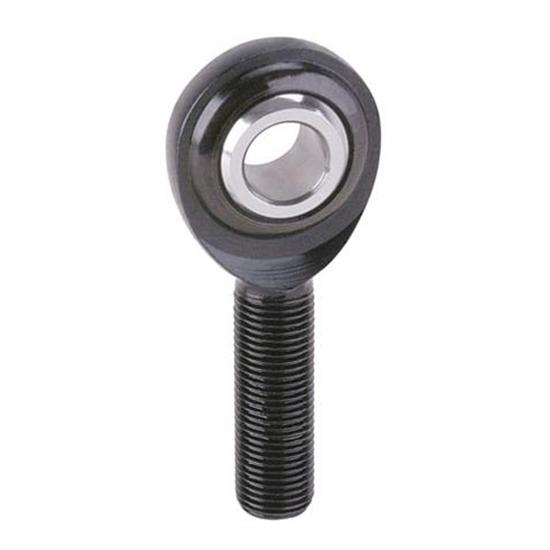

Pro-1 Chromoly Heim Joint Rod Ends, 5/8-18 RH Male

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These Pro-1 rod ends are general purpose, 2-piece, heavy duty rod ends. They feature a chromoly steel body and are black oxide coated to resist corrosion. Heat treated, precision ground ball without a race (metal to metal contact). Pro-1 ends will withstand a greater static load than our "Standard" or "Precision" rod ends.

Applications: Steering & suspension components on moderate to high horsepower applications.

Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Pro-1 Rod End Chart (GIF)

Customer Reviews

Rated 4.4 out of 5 by 5 reviewers.
RATING BREAKDOWN
5 reviews
5 Stars
3
4 Stars
1
3 Stars
1
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

wydirt
Verified Purchaser
Verified Reviewer
glenrock wy

WELL BUILT

June 22, 2015
SERVES IT PURPOSE ITS BUILT FOR AND WORKS FREELY
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

jayc
houston,tx

decent

September 19, 2013
dePending on what you are looking to use it for.. not sure if I would trust it's quality as they are made in china.. the ball seems a little "loose and spun freely" to me and the others felt tighter.. I'm not sure if this translates to looser feel..
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Steve
Verified Purchaser
Longmont, Co

Works very well

April 29, 2011
[...]
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

grompy G
Harrah OK

hard to find item

April 23, 2010
I hope this item is as solid as you claim it is.
Pros:
  • Looks like quality stuff
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

studebakermatt
nc

Great

January 23, 2010
works great to hold my front end together
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 1 answers

1 answers

What is length center of whole to end of thread?

GoneinaFlash
W. Jeff OH 43162
March 15, 2013

What is length center of whole to end of thread?

Answers

March 18, 2013
Jason
From center of hole to end of shank is 2.625" on the 5/8" Pro 1 rod end
Page 1 of 1
