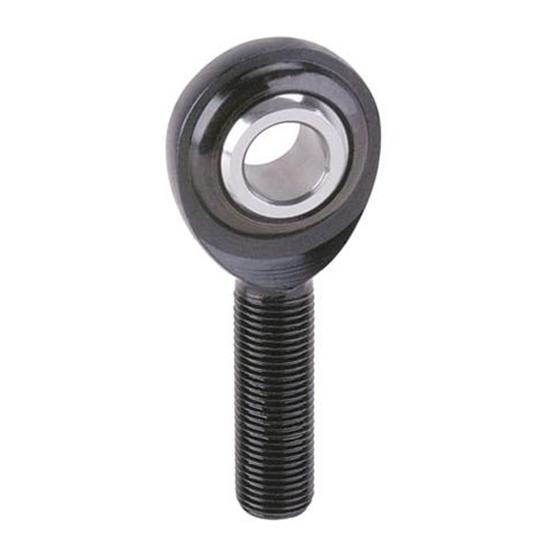

Pro-1 Chromoly Heim Joint Rod Ends, 5/8-18 RH Male, 1/2 Inch Hole

SAME DAY SHIPPING!

Share by Email

From
To

Click image to enlarge

X

Details

Reviews

Q & A

What's in the Box

These Pro-1 rod ends are general purpose, 2-piece, heavy duty rod ends. They feature a chromoly steel body and are black oxide coated to resist corrosion. Heat treated, precision ground ball without a race (metal to metal contact). Pro-1 ends will withstand a greater static load than our "Standard" or "Precision" rod ends.

Applications: Steering & suspension components on moderate to high horsepower applications.

Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

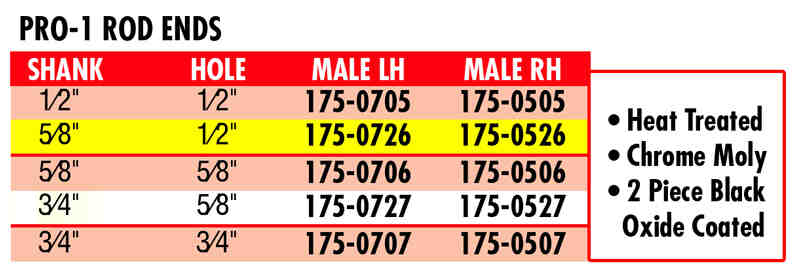

Pro-1 Rod End Chart (GIF)
