Premium Small Block Ford 327 Stroker Kits

Specs
Sold in Quantity:
Kit
Stroke:
3.25
Rod Journal Diameter:
2.10"
Piston Ring Style:
C
Connecting Rod Length:
5.400"
Garage Sale:
No
Bearing Undersize:
Standard
Coated Bearing:
No
Crankshaft Material:
Forged 4340 Steel
Connecting Rod Type:
H-Beam
Connecting Rod Material:
Forged 4340 Steel
Premium Small Block Ford 327 Stroker Kits
Premium Small Block Ford 327 Stroker Kits

Click image to enlarge

Speeday Motors Logo
X
Premium Small Block Ford 327 Stroker Kits

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

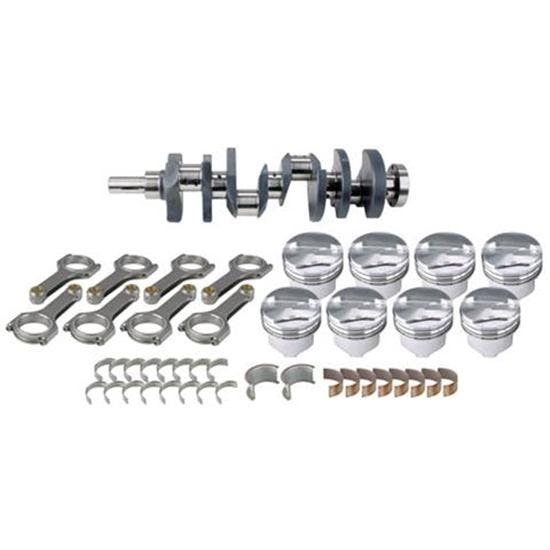

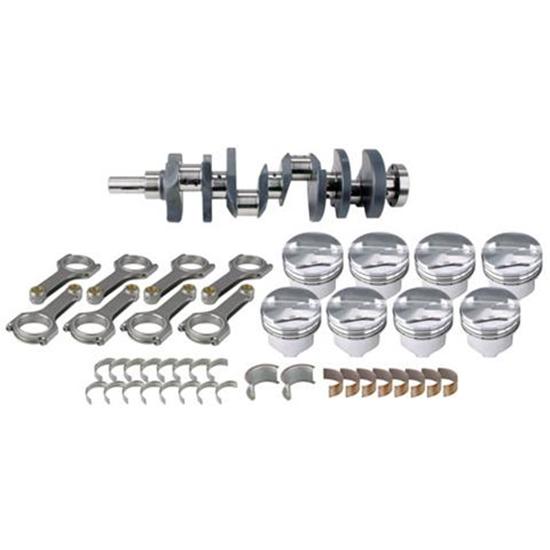

Get premium components at a superior value with this forged rotating assembly, only from Speedway Motors! These stroker kits include a forged crank, H-beam rods, hypereutectic pistons, rod bearings, and main bearings.

  • Speedway 4340 Forged Steel Crank
    • Precision ground, micro polished journals
    • Heat treated and stress relieved
    • Magnafluxed, X-rayed and sonic tested
    • 360 degree indexed stroke
    • Cross-drilled, chamfered oil supply holes
    • Nitrided journal surfaces
  • 4340 H-beam Connecting Rods
    • 5.4" length
    • .927 pin
    • Chevy bearings
    • ARP bolts
  • Keith Black Hypereutectic Pistons
    • T6 heat treated
    • Available in .030" or .040" oversizes
  • Clevite 77 Rod and Main Bearings
    • 2.1" GM rod bearings
    • Standard 302 Ford main bearings

NOTE: Piston rings are not included and must be purchased separately. Use ring Style C.

Due to the many variations in balancers and flywheels, Speedway Motors does not offer balancing services on any Ford crankshafts or rotating assemblies.

Item Details

Dished, .927" pin
Comp. 64cc: 9.2
Comp. 69cc: 8.8
Ring Style: C

You may also be interested in:

Speedway Pro Series File-Fit Piston Rings, 4.00 Bore, Style C


By using an 80,000 psi low friction, low porosity plasma moly top ring along with purpose build second and oil rings, we have the best rings for the buck on the market. You will make more horsepower over other brands using these rings due to the unique design and ring face finish. 20+ additional horsepower has been seen using these rings. File fit design.

  • Top  1/16"
  • 2nd  1/16"
  • Oil  3/16"

Ring Style Chart (GIF)

Premium Small Block Ford 347 Stroker Kits


Get premium components at a superior value with this forged rotating assembly, only from Speedway Motors! These stroker kits include a forged crank, H-beam rods, hypereutectic pistons, rod bearings, and main bearings.

  • Speedway 4340 Forged Steel Crank
    • Precision ground, micro polished journals
    • Heat treated and stress relieved
    • Magnafluxed, X-rayed and sonic tested
    • 360 degree indexed stroke
    • Cross-drilled, chamfered oil supply holes
    • Nitrided journal surfaces
  • 4340 H-beam Connecting Rods
    • 5.4" length
    • .927 pin
    • Chevy bearings
    • ARP bolts
  • Keith Black Hypereutectic Pistons
    • T6 heat treated
    • Available in .030" or .040" oversizes
  • Clevite 77 Rod and Main Bearings
    • 2.1" GM rod bearings
    • Standard 302 Ford main bearings

NOTE: Piston rings are not included and must be purchased separately. Use ring Style C.

Due to the many variations in balancers and flywheels, Speedway Motors does not offer balancing services on any Ford crankshafts or rotating assemblies.

Speedway Gas Proven Series Piston Rings, 4.00 Bore, Styles A, C, D
                        Speedway Gas Proven piston rings are the best value in piston rings! These tough rings will withstand 12.5 maximum compression, 7000 maximum sustained RPM, and up to 450 HP. First and second rings are cast iron yielding 55,000 psi strength with end gap factory set at .012" to .018". Three piece oil ring features chrome rails over a stainless steel expander, which gives uniform wall pressure and efficient oil control.

Designed for gasoline use. Not recommended for use with alcohol.

Ring Style Chart (GIF)

Speedway Plasma Moly Piston Rings, 4.00 Bore, Style C


Speedway premium Plasma Moly piston rings work with either gas or alcohol fuels, handle 8000+ rpm, and up to 14:1 compression.

Ring Style Chart (GIF)

1981-95 S/B Ford 302 4-Bolt Balancer, 50 Oz.


This Small Block Ford balancer features billet steel forgings, a durable elastomer bond. The 50 oz. balance factor is common to 1981-95 302.

Has a 4-bolt pulley hub.  Has a anodized black finish.
