Precision Carbon Steel RH Male Heim Joint Rod Ends, 7/16 Inch

SAME DAY SHIPPING! Order within the next 7 hours 19 minutes and receive same day shipping

Specs
Material Type:
Steel
Finish:
Natural
Hole Diameter:
0.4375
Thread Pitch:
7/16"-20
Threads:
RH Male

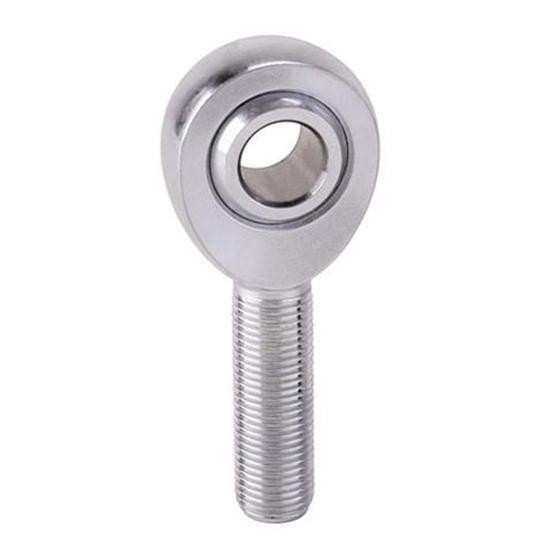

Precision Carbon Steel RH Male Heim Joint Rod Ends, 7/16 Inch

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Precision steel rod ends provide greater strength than our "standard" rod ends. They have close tolerance and have a 3 piece medium duty rod end. Carbon steel body, 5210 precision ground ball and feature a Teflon Kevlar race. Self lubrication teflon liner to seal out dirt and debris. Shank and hole are the same size.

Applications: Clutch, Brake, Steering & Suspension Components. Quieter, Smoother, & More Durable Than 2 Piece Rod Ends. Tight Tolerance of Kevlar Race Reduces "Slop" In Steering & Suspension.

ASSEMBLY TIP:
To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Standard Heim Sizes Chart (GIF)
