Precision Carbon Steel LH Male Heim Joint Rod Ends, 3/16 Inch (10-32)

SAME DAY SHIPPING! Order within the next 8 hours and receive same day shipping

Specs
Material Type:
Steel
Threads:
LH Male
Finish:
Natural
Thread Pitch:
10-32
Hole Diameter:
0.1875

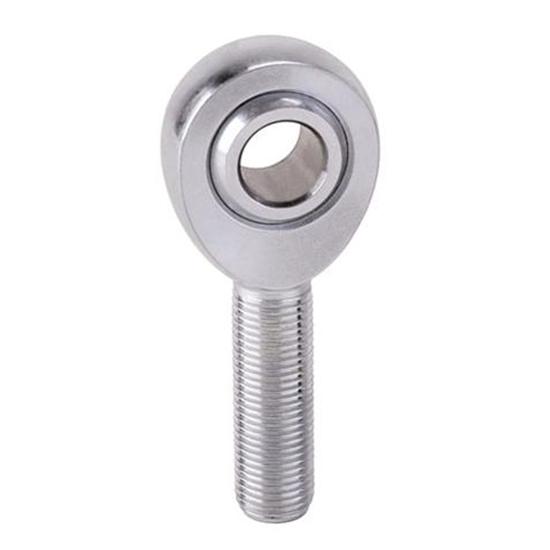

Precision Carbon Steel LH Male Heim Joint Rod Ends, 3/16 Inch (10-32)

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Precision steel rod ends provide greater strength than our "standard" rod ends. They have close tolerance and have a 3 piece medium duty rod end. Carbon steel body, 5210 precision ground ball and feature a Teflon Kevlar race. Self lubrication teflon liner to seal out dirt and debris. Shank and hole are the same size.

Applications: Clutch, Brake, Steering & Suspension Components. Quieter, Smoother, & More Durable Than 2 Piece Rod Ends. Tight Tolerance of Kevlar Race Reduces "Slop" In Steering & Suspension.

ASSEMBLY TIP:
To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Precision Rod Ends Chart Application (GIF)

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

What is the width of this heim?

March 17, 2012

What is the width of this heim?

Answers

March 19, 2012
Jason
The width of part #1750310 is .625" and is .312" thick
Page 1 of 1
