Precision Carbon Steel LH Male Heim Joint Rod Ends, 5/8 Inch

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Steel
Finish:
Natural
Hole Diameter:
0.6250
Thread Pitch:
5/8"-18
Threads:
LH Male

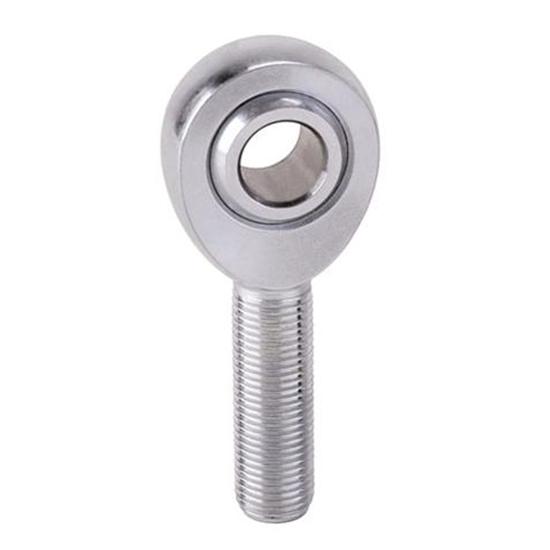

Precision Carbon Steel LH Male Heim Joint Rod Ends, 5/8 Inch

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Precision steel rod ends provide greater strength than our "standard" rod ends. They have close tolerance and have a 3 piece medium duty rod end. Carbon steel body, 5210 precision ground ball and feature a Teflon Kevlar race. Self lubrication teflon liner to seal out dirt and debris. Shank and hole are the same size.

Applications: Clutch, Brake, Steering & Suspension Components. Quieter, Smoother, & More Durable Than 2 Piece Rod Ends. Tight Tolerance of Kevlar Race Reduces "Slop" In Steering & Suspension.

ASSEMBLY TIP:
To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Precision Rod Ends Chart Application (GIF)

Customer Reviews

Rated 5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Automobile Addiction
Verified Purchaser
Morristown, NJ
Product Rating

the best for the money

March 23, 2012
You get the best for the money, the quality is outstanding and works as good as expensive ones.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

'46 International Rat Rod truck
Verified Purchaser
Iowa
Product Rating

Now this is quality!

December 29, 2011
I am using these on my rat rod project and the quality FAR surpasses the ones that I had purchased from a different source for about the same price.
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 2 answers

do these heim joints come with jam nuts? Thanks

1 answers
SacredSteel
February 21, 2015

do these heim joints come with jam nuts? Thanks

Answers

February 21, 2015
EricM
No these do not come with jam nuts. They are sold separately as part number 1756046.

What is length center of hole to end of thread?

1 answers
GoneinaFlash
W. Jeff OH 43162
March 15, 2013

What is length center of hole to end of thread?

Answers

March 18, 2013
Jason
Center of hole to end of shank on the 5/8" rode end is 2.625"
Page 1 of 1
