Precision Carbon Steel LH Male Heim Joint Rod Ends, 1/2 Inch

SAME DAY SHIPPING! Order within the next 10 hours 43 minutes and receive same day shipping

Specs
Material Type:
Steel
Threads:
LH Male
Finish:
Natural
Thread Pitch:
1/2"-20
Hole Diameter:
0.5000

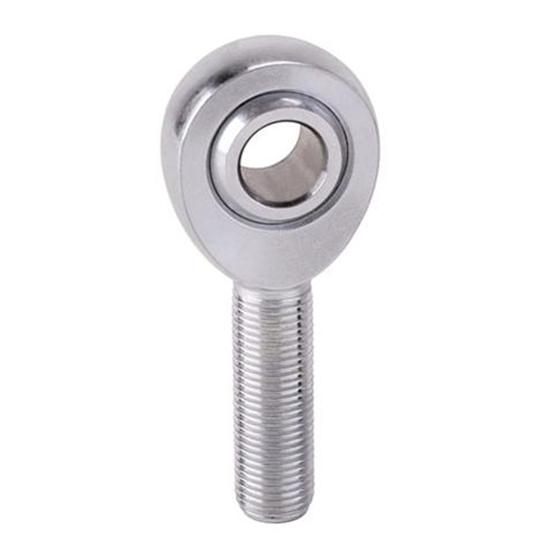

Precision Carbon Steel LH Male Heim Joint Rod Ends, 1/2 Inch

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Precision steel rod ends provide greater strength than our "standard" rod ends. They have close tolerance and have a 3 piece medium duty rod end. Carbon steel body, 5210 precision ground ball and feature a Teflon Kevlar race. Self lubrication teflon liner to seal out dirt and debris. Shank and hole are the same size.

Applications: Clutch, Brake, Steering & Suspension Components. Quieter, Smoother, & More Durable Than 2 Piece Rod Ends. Tight Tolerance of Kevlar Race Reduces "Slop" In Steering & Suspension.

ASSEMBLY TIP:
To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Precision Rod Ends Chart Application (GIF)

Customer Reviews

Rated 4.5 out of 5 by 4 reviewers.
RATING BREAKDOWN
4 reviews
5 Stars
2
4 Stars
2
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Dwarf dude
Verified Purchaser
SoCal

Great product so far

September 21, 2010
Bought some of these and used them on the steering. The front end recently tool a hard enough hit to break a tie-rod, but the rod-end is till in new condition. They're worth the upgrade from the cheaper rod ends.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Luke
Dayton Ohio

I would buy again!

August 27, 2010
Used for the tie rod ends for a Polaris RZR
Pros:
  • Very nice quality product
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

coachrandi
Verified Purchaser
california

very good

July 19, 2010
suspension panhard bar. price and finish
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

yeoman fabricator
asheville nc

nice quality

February 08, 2010
Nice quality
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 1 answers

1 answers

Specific Dimensions of this product. Hi there, could you share the specific dimensions? I'm looking to match another set and they are: Left Hand Thread, 1/2"-20 Shank Thread Size, 1/2" Bore, ±6 degrees Misalignment Angle, 5/8" Length Through Bore, 1-5/16" Overall Head Width, 1.469" Thread Length. Thank you.

Montana
September 06, 2014

Specific Dimensions of this product. Hi there, could you share the specific dimensions? I'm looking to match another set and they are: Left Hand Thread, 1/2"-20 Shank Thread Size, 1/2" Bore, ±6 degrees Misalignment Angle, 5/8" Length Through Bore, 1-5/16" Overall Head Width, 1.469" Thread Length. Thank you.

Answers

September 08, 2014
EricM
The dimensions of this heim joint match your requirements other than the thread length is 1.50" on ours. That small difference in thread length typically should not present a problem.
