Power Radio Antenna
Click image to enlarge
Q & A
What's in the Box

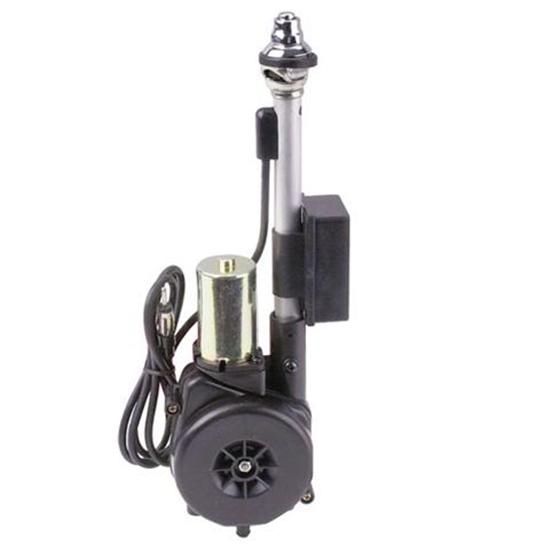

These chrome power radio antennas will put the finishing touch on your ride! Motorized antenna has several mounting options and can be frenched into a fender. Features a 3 ft. long chrome antenna. 12 volt operation.
- Compact, lightweight and requires minimum space to install
- Powerful antenna motor for dependable service
- Provides excellent AM/FM signal reception
- Requires a 12" deep x 4" x 2.5" space below the antenna "hole"
- Requires a 5/8" hole in the fender
- Antenna lead is 3 ft. long
- AM/FM signal reception
