Canadian Leaf

Posies Super Slide Spring 2040 1937-41 Ford Leaf Spring, 2 Inch Drop

Specs
Material Type:
Steel
Overall Width:
2.00
Sold in Quantity:
Each
Finish:
Natural
Number of Leafs:
9
Spring Height (Underside):
4.88
Length Eye to Eye:
39.00
Drop:
2.00
MFG. Part #:
2040
Garage Sale:
No
Leaf Spring Eye Type:
Reverse Eye
Spring Location:
Front
Front Eye I.D.:
.75
Rear Eye I.D.:
.75

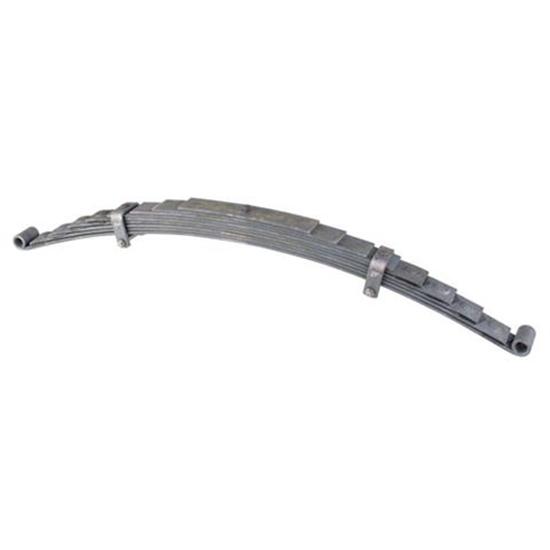

Posies Super Slide Spring 2040 1937-41 Ford Leaf Spring, 2 Inch Drop
Posies Super Slide Spring 2040 1937-41 Ford Leaf Spring, 2 Inch Drop

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Achieve a smoother, more comfortable ride with one of Posies Super Slide™ springs! The ends of the spring leaves of a Super Slide™ spring have a unique "dimple" shape that retains a moly-nylon button which works as a dry lubricant to stop leaf-to-leaf interference. This freedom from friction lets the spring move more easily, thereby giving a softer, quieter ride.

  • Made in the U.S.A. from high grade tempered steel
  • Reversed eyes for a 2" drop compared to stock
  • Get your ride lower without sacrificing ride comfort
  • Plain steel finish

Posies Spring Application Chart (GIF)

Leaf Spring Measuring Guide (Link)

You may also be interested in:

Posies Super Slide Springs 2037-40L 35-40 Ford Leaf Spring-2 In. Drop
(Part #58020374L)


Achieve a smoother, more comfortable ride with one of Posies Super Slide™ springs! The ends of the spring leaves of a Super Slide™ spring have a unique "dimple" shape that retains a moly-nylon button which works as a dry lubricant to stop leaf-to-leaf interference. This freedom from friction lets the spring move more easily, thereby giving a softer, quieter ride.

  • 35-3/4" Reverse Eye
  • Made in the U.S.A. from high grade tempered steel
  • Reversed eyes for a 2" drop compared to stock
  • Get your ride lower without sacrificing ride comfort
  • Plain steel finish

Posies Spring Application Chart (GIF)

Leaf Spring Measuring Guide (Link)

Speedway 2 Inch Wide Nylon Spring Shackle Kit, Zinc
(Part #91033324-ZINC)


Fits front or rear springs. All measurements are width of spring. All nylon bushed shackles are 1-1/2" shackle bolt center to shackle bolt center.

Bushings are included. Bushing O.D. is 3/4".



Leaf Spring Measuring Guide (Link)

Stainless Steel Spring Clamps, 2 Inch Wide Leaf Spring
(Part #91033202)


Stainless steel spring clamps to keep your front or rear cross spring in alignment. Works with all brands of leaf springs.

To determine which spring clamp will fit your application, use a tape measure, ruler or caliper to measure the width of the main spring leaf (not length of leaf or leaf thickness) and order the spring clamps for that width. Some later fat-fendered Ford cars used the 2" wide springs in front.

  • Stainless steel
  • Hex head - 7/16" Wrench
  • 1/4"-10 thread pitch
  • Under-head bolt length - 2.70" long
  • Bolt hole diameter - 1/4"
  • For 2" wide leaf spring
  • Works with all brands of leaf springs



Posies 2-1/4 Inch Spring Button
(Part #5806161)
                        Replacement moly-nylon "Super Slide TM" Spring buttons.
  • 2-1/4" diameter
  • Sold each
