Professional Products 10215 Polished Aluminum Fuel Filter with Mount

Specs
Centerline of Holes:
1.50
Material Type:
Aluminum
Overall Height:
2.45
Overall Length:
3.00
Sold in Quantity:
Each
Finish:
Polished
Inlet Size:
0.38
Outside Diameter:
2.00
Thread Pitch:
3/8" NPT
Flow Rating:
160 GPH @ 7 PSI
MFG. Part #:
10215
Filter Element Type:
Stainless Steel Mesh
Notes
Intended for "carbureted" systems only. Features (2) cleanable/reusable S.S. screen filters (one coarse pre-filter and one fine 10 microns screen).

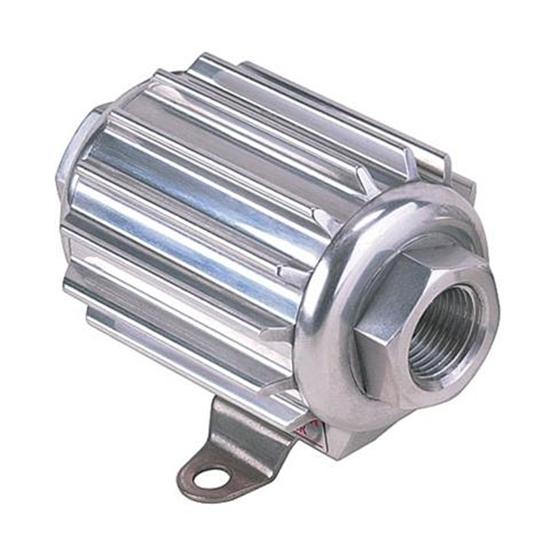

Professional Products 10215 Polished Aluminum Fuel Filter with Mount

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Highly polished aluminum filter complete with a 10 micron reusable stainless steel filter element. Intended for carbureted systems with 8 PSI max pressure. Filter elements can be cleaned in solvent and reused.
  • 3" long x 2" diameter
  • Flows 160 gallons per hour at 7 psi
  • 3/8" NPT female thread inlet/outlet

Customer Reviews

Rated 4.6 out of 5 by 5 reviewers.
RATING BREAKDOWN
5 reviews
5 Stars
3
4 Stars
2
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Jackflash
Chardon,Ohio
Product Rating

excellent product and will use again

June 06, 2010
Building a show streetroadster and this product is kind of detail that judges look for
Pros:
  • Very Good Product
  • VERY SATISFIED
  • Looks Great
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

hot rod vw
Verified Purchaser
hky., nc
Product Rating

Best LOOKING Filter

October 05, 2010
Chrome mounting bracket is fastened to filter using 2 machine screws. Comes off easy when susPending filter on fittings or threads. Can be used like the similar filter without the mounting bracket.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

BOB
Verified Purchaser
WESTMINSTER, COLORADO
Product Rating

RECOMMEND THIS FILTER FOR YOUR PROJECT

May 01, 2011
AGAIN, GREAT QUALITY PRODUCTS[...]. HIGHLY RECOMMENDED.
Pros:
  • Easy To Install
  • Durable
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

CHUCKLES GARAGE[@]
Verified Purchaser
SANTA ROSA, CA
Product Rating

Nice filter for the money.

July 16, 2010
USING THIS IN A 62 FALCON GASSER. NICE FIT AND FINISH, [...]
Pros:
  • Nicely made part Hi Flow
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

J Lindz
Apple Valley, CA
Product Rating

Not a stand alone filter

July 08, 2010
My only complaint is that the NPT threads where not cut deep enough. I had to take apart the filter and re-tap the ends. Otherwise I like the product. Be aware that the filter surface area is quite small, I would not recommend this as your primary filter. I run a dwarf car that is fuel injected and was having problems with some dirt getting past my filter. I now run a standard inline filter between the tank and pump, then this filter between the pump and the injectors. Problem solved.
Pros:
  • Small
  • Easy to mount
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 3 answers

Can you run with as coarse filter only? The specs say this filter comes with coarse filter and also 10 micron screen. Do you know what micron the coarse filter is, and can I run coarse filter only without the 10 micron screen? Would like to use this as pre filter but the 10 micron filtration would be hard on the pump.

1 answers
HotRodBen
Tennessee, USA
February 23, 2013

Can you run with as coarse filter only? The specs say this filter comes with coarse filter and also 10 micron screen. Do you know what micron the coarse filter is, and can I run coarse filter only without the 10 micron screen? Would like to use this as pre filter but the 10 micron filtration would be hard on the pump.

Answers

February 25, 2013
Jason
The coarse filter is 35 micron, using without the 10 micron screen will limit the filters effectiveness. This filter flows 160 gph at 7 psi

Can this filter be put inline before the mechanical fuel pump

1 answers
Tommy
November 11, 2012

Can this filter be put inline before the mechanical fuel pump

Answers

November 12, 2012
Jason
This filter is intended for "carbureted" systems only. Features (2) cleanable/reusable S.S. screen filters (one coarse pre-filter and one fine 10 microns screen). This filter is designed to go before fuel pump

What does the filter weigh?

1 answers
Frankie
Los Angeles, Ca
October 11, 2011

What does the filter weigh?

Answers

October 11, 2011
Jason
This filter weighs about 4/10 of a pound
Page 1 of 1
