Plain Tie Rod/Drag Link Kit with 11/16 Tie Rod Ends, Custom Length

SAME DAY SHIPPING! Order within the next 5 hours 12 minutes and receive same day shipping

Plain Tie Rod/Drag Link Kit with 11/16 Tie Rod Ends, Custom Length

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.
  • Item 91632514 is made to order. We will ship it from our warehouse when it is produced.

Details

Reviews

Q & A

What's in the Box

These tie rod or drag link kits are pre-cut and tapped lengths of 7⁄8" O.D. tubing available multiple lengths. Kits come complete with 11/16" traditional 7° tie rod ends and jam nuts. Tubing will be tapped with right-hand & left-hand threads for adjustability.

Specify desired length in comments section of shopping cart. No returns/exchange on custom length links. Select your length based on the center-to-center of the tie rod ends, which will also be the eye-to-eye distance between the steering arms (the acutal tube will be 3-1/2" shorter than length selected). At selected length, the link will be adjustable from 1/2" shorter to 3/4" longer.

  • Precut and tapped lengths of 7/8" O.D. tubing
  • Available in these assembled lengths: 25.5", 28.5", 30", 32", 42.5", 44", 45", 46", 48", 52.5", and 54"
  • Complete with 11/16" tie rod ends and jam nuts
  • Adjustable from 1/2" shorter to 3/4" longer
  • Available in plain steel
  • All lengths measured eye-to-eye

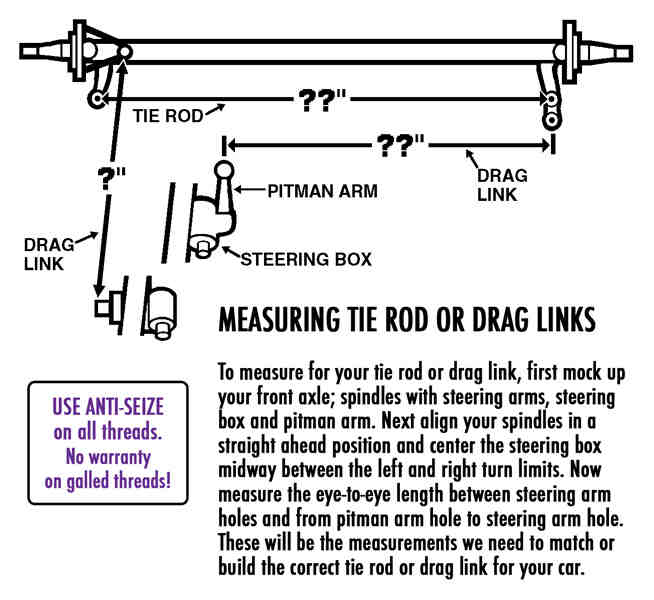

Measuring Tie Rod or Drag Links (GIF)

Tapered Steering Arm Illustration (GIF)

Note: Always use anti-seize to prevent galling the treads during final installation.

Note: Custom length: No C.O.D. or return/exchange
