Plain Front Tube Axle w/ Perch Bolt Holes, Ford Spindle

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Each
Diameter:
2.00
Drop:
3.00
Material Thickness:
.250
Perch Centers:
37.00
Garage Sale:
No
King Pin Centers:
48.00
Spindle Type:
Ford

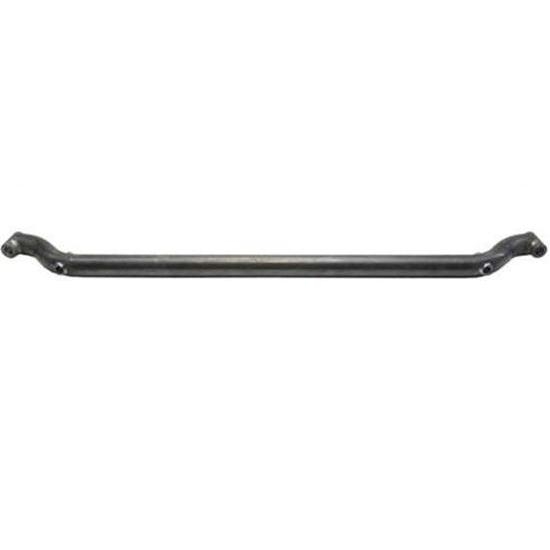

Plain Front Tube Axle w/ Perch Bolt Holes, Ford Spindle
Plain Front Tube Axle w/ Perch Bolt Holes, Ford Spindle
Plain Front Tube Axle w/ Perch Bolt Holes, Ford Spindle

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Speedways 3" Drop Tube Axles are a one-piece design featuring precision welded ends and perch bolt holes. Axle is formed from high strength 2" x .250" wall steel tubing. Use with 1937-48 Ford style spindles.

Leaf Spring Measuring Guide (Link)

Caster Angle Illustration (GIF)

Item Details

48" king pin centers, 36-3/8" perch centers

Notes

  1. Due to the design of this axle, batwings 916-35000 will NOT work without significant grinding on the edge of the bracket.

Specs

  • King Pin Center-to-Center:  48"
  • Spring Perch Center-to-Center:  37"
  • Spring Perch Hole O.D.:  1"
  • Spring Perch Hole I.D.:  11/16"
  • Spring Perch Hole Length:  2-1/4"

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

Is this axle suited for a V8 powered Model A Ford?

Aurelio
October 09, 2011

Is this axle suited for a V8 powered Model A Ford?

Answers

October 11, 2011
John
Part # 91035120 This axle is used in many of our front end kits and can accept either the bat wing brackets for the four bar suspension or the radius rod brackets if using the hair pins or radius rods. It will also accept our new wishbones if so desired. The axle is 48” wide and on some Model A applications you may need the narrower 46” which is only available in the I-beam configuration. This axle uses a 31 ¼” wide spring which is offered in standard or reverse eye and also in plain or chrome finish.
