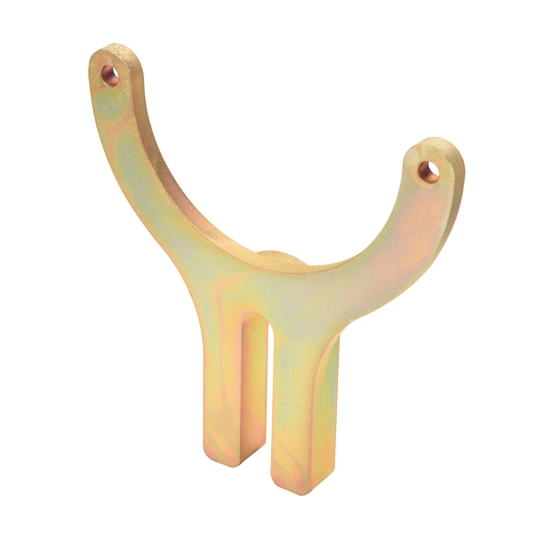

Plain 1938-1945 Flathead Alternator Bracket

SAME DAY SHIPPING!

Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Zinc
Belt Width:
.63
Notes
May require some modification for alternator fitment.

Share by Email

From
To

Click image to enlarge

X

Details

Reviews

Q & A

What's in the Box

If you're converting your Flathead-powered car or truck to a 12-volt electrical system, you'll need a modern alternator for proper charging. This bracket mounts the ever-popular GM 1-wire alternator to a 1938-1945 Flathead Ford V8. The plain steel bracket can easily be painted to match your engine.

  • Center mounts GM SI-style alternators
  • Must use with the single 5/8" wide belt
  • Must use with the early "short" water pumps

Mounting Guide (Link)
