Moroso 24316 Pick-Up for Hi-Volume Pump

SAME DAY SHIPPING! Order within the next 13 hours 50 minutes and receive same day shipping

Specs
Centerline of Holes:
1.90
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Natural
Tube O.D.:
.63
MFG. Part #:
24316

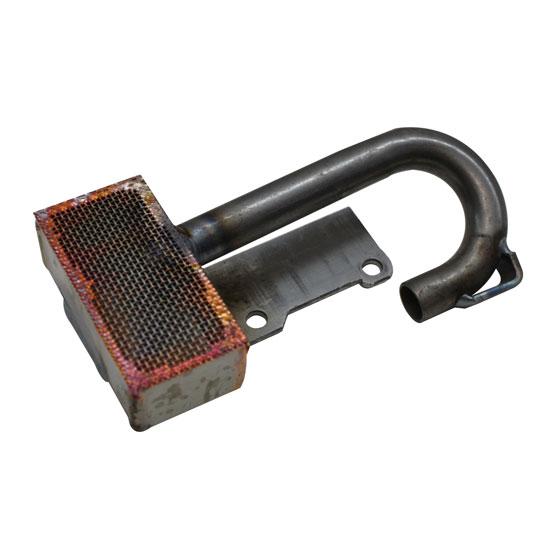

Moroso 24316 Pick-Up for Hi-Volume Pump

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Pick-up for Hi-Volume pump

Customer Reviews

This product has no reviews.

Product Q&A

2 questions : 2 answers

1 answers

What is the diameter of the pickup tube?

Emporia, KS
August 06, 2011

What is the diameter of the pickup tube?

Answers

August 08, 2011
Jason
Pick up tube size is 5/8"
1 answers

what is the differance in 545-24316 and 545-24317 pick up tubes, are they both 5/8 diameter?

August 15, 2011

what is the differance in 545-24316 and 545-24317 pick up tubes, are they both 5/8 diameter?

Answers

August 17, 2011
Jason
Both parts have a 5/8" diameter. 54524316 is for high volume pump and 54524317 is standard volume pump.
