PerTronix 1181 Ignitor Points Eliminator Kit, 1957-74 GM V8

SAME DAY SHIPPING! Order within the next 10 hours 11 minutes and receive same day shipping

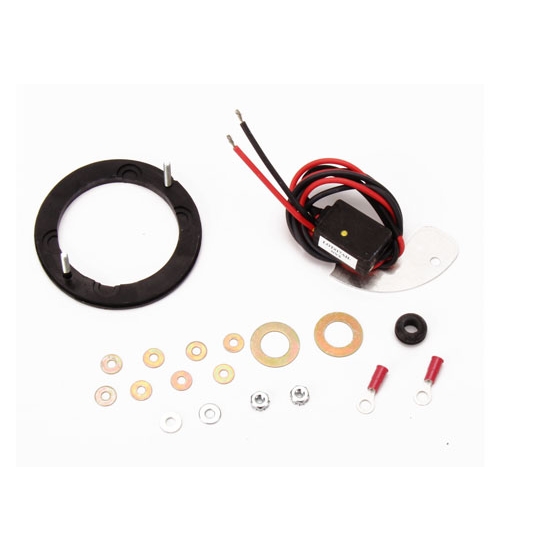

PerTronix 1181 Ignitor Points Eliminator Kit, 1957-74 GM V8
PerTronix 1181 Ignitor Points Eliminator Kit, 1957-74 GM V8
Product Video
PerTronix 1181 Ignitor Points Eliminator Kit, 1957-74 GM V8

Click image to enlarge



Details

Reviews

Q & A

What's in the Box

Never change points again with the PerTronix Ignitor points conversion kit. It provides increased voltage for improved performance and fuel efficiency. The system completely eliminates the contact points and fits neatly underneath the distributor cap for a "stock" look. Compatible with all 12 volt negative ground systems.

PerTronix Ignitor Systems can be used with any stock point-type coil, or use the Flame-Thrower 40,000 volt coil for maximum performance. Also compatible with MSD ignition boxes.

  • Delivers 2x the voltage to the plugs for more power and MPG
  • 2:1 improvement over points in current fall time, increasing coil output
  • Hall Effect Trigger with no moving parts
  • Epoxy molding makes module impervious to contamination
  • Fits entirely inside distributor for a clean, stock look
  • Stable timing - no adjustment needed
  • Will trigger most multi-spark CD ignitions
  • Easy installation

Ignitor Points Eliminator Installation Instructions (PDF)

Specs

  • Operating Voltage: 8 to 16 volt DC
  • Temperature Range: -50°F  to 300°F
  • RPM Range: 0 to 15,000 RPM
  • For use with 12 volt negative ground systems

Item Details

Buick V8: 1957 - 1974
Cadillac V8: 1956 - 1974
Chevy V8: 1957 - 1974
Olds V8: 1956 - 1974
Pontiac V8: 1957 - 1974

Customer Reviews

Rated 4.6 out of 5 by 5 reviewers.
RATING BREAKDOWN
5 reviews
5 Stars
3
4 Stars
2
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Sam53
Faribault, MN 55021, USA
Product Rating

This product increases reliability

September 09, 2013
This is a quality product at a good price that does a good job!
Pros:
  • simple and easy to install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Jackson
Verified Purchaser
Faribault, MN
Product Rating

WORKS BETTER THAN EXPECTED

August 13, 2010
Replaced old points/condenser in one afternoon, my streetrod started much easier, accelerates smoother, it's fun to drive again.
Pros:
  • Extremely easy to install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

none
Verified Purchaser
Sloansville, NY
Product Rating

Best Bang for the Buck!

September 29, 2011
My homebuilt street rod is a 1935 Plymouth with a 1965 Buick engine that originally used points and coil ignition. I switched to the Pertronix Ignitor and coil and with no other changes, the power and smoothness of the engine was noticably improved. I wish this product had been around back when all we had were points! I am very satisfied with this product!
Pros:
  • Improves Engine Efficiency
  • Easy To Install
  • Increases Power
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

HOTROD PAULL
Verified Purchaser
CT.
Product Rating

THIS IGNITER WORK GREAT

September 30, 2010
NEVER SET POINTS AGAIN
Pros:
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

G.P. Cruiser
Minneapolis, Minnesota.
Product Rating

Why didn't it come with it originally?

April 16, 2010
This product was very easy to install and is reasonably inexpensive to own. The improvement in performance greatly outweighs any cost to purchase. Haven't really encountered any negatives so far. We are leaving soon on a 2500 mile road trip. I expect no problems.
Pros:
  • ERngine idles smoother
  • The car starts quicker
  • Inexpensive to own
  • Seems to have more power
  • Was easy to install
  • Mileage has improved
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 4 answers

Cadillac I have a 1957 Cadillac Biarritz 365ci V8. Will this fit my application? Just making sure before I order. Thanks.

1 answers
Ratfinkbob
Arlington, Tx
February 20, 2014

Cadillac I have a 1957 Cadillac Biarritz 365ci V8. Will this fit my application? Just making sure before I order. Thanks.

Answers

February 21, 2014
EricM
This electronic conversion kit will fit the Cadillac V8’s from 56 to 74.

does it replace condensor also?

2 answers
June 16, 2011

does it replace condensor also?

Answers

October 01, 2013
btscruiser
Yes.
June 17, 2011
Jason
Yes, the condensor is not needed but can be kept for a back up

I have a 1952 Packard 200 deluxe with a thunderbolt 288. Will any of these work for this motor?

1 answers
June 08, 2011

I have a 1952 Packard 200 deluxe with a thunderbolt 288. Will any of these work for this motor?

Answers

June 13, 2011
John
These kits eliminate the hassle of point replacement and loss of gap and change of dwell as the wear block dimension changes. It updates the distributor to a modern day electronic ignition. For applications other than listed we suggest contacting Pertronix direct for availability. For complete system we suggest using the recommended coil with proper ohm rating.
Page 1 of 1

You may also be interested in:

Crane Cams 7501710 1957-74 XRi Chevy V8 Points Ignition Conversion Kit
(Part #2881710)
                        Here’s the easiest points conversion kit on the market. Simply remove the old points and condenser, install the XR-i on the supplied adapter plate, and run a couple of wires. Everything fits under the OEM distributor cap so you retain a restoration-perfect “factory look.”
  • Never replace points again
  • Fits 1957-1974 Chevy V8
  • Easy two wire hookup
  • Improved starting and mileage
  • Built-in 4000-8000 RPM adjustable rev limiter
  • Picks up timing from distributor cam lobe
  • Fully sealed
  • Operating Voltage:  6-18 Volts, reverse polarity protection, negative ground
  • Current Draw:  3 amps max @ 5,500 RPM
  • RPM Operating Range:  8,000 RPM
  • RPM Limiter Range:  4,000 to 8,000 RPM
  • Primary Voltage Output:  400 volts (inductive discharge)
  • Primary Energy utput:  45 millijoules w/ PS20 coil and 1.65L ballast resistor
  • Peak Spark Gap Current:  50 milliamps w/ PS20 Coil and 1.65L ballast resistor
  • Spark Duration:  2100 microseconds @ 2,000 RPM

Instructions (PDF)

Crane Cams 7501720 57-74 Pontiac/67-Up Old XRi Ignition Conversion Kit
(Part #2881720)


Here’s the easiest points conversion kit on the market. Simply remove the old points and condenser, install the XR-i on the supplied adapter plate, and run a couple of wires. Everything fits under the OEM distributor cap so you retain a restoration-perfect “factory look.”

  • Never replace points again
  • Easy two wire hookup
  • Improved starting and mileage
  • Built-in 4000-8000 RPM adjustable rev limiter
  • Picks up timing from distributor cam lobe
  • Fully sealed
  • Operating Voltage:  6-18 Volts, reverse polarity protection, negative ground
  • Current Draw:  3 amps max @ 5,500 RPM
  • RPM Operating Range:  8,000 RPM
  • RPM Limiter Range:  4,000 to 8,000 RPM
  • Primary Voltage Output:  400 volts (inductive discharge)
  • Primary Energy utput:  45 millijoules w/ PS20 coil and 1.65L ballast resistor
  • Peak Spark Gap Current:  50 milliamps w/ PS20 Coil and 1.65L ballast resistor
  • Spark Duration:  2100 microseconds @ 2,000 RPM
Crane Cams 7501715 1957-74 Chevy V8 XRI Points Ignition Conversion Kit
(Part #2881715)


Here’s the easiest points conversion kit on the market. Simply remove the old points and condenser, install the XR-i electronic ignition module on the supplied adapter plate, and run a couple of wires. Everything fits under the OEM distributor cap so you retain a restoration-perfect “factory look.”

Each kit includes a Crane PS20 1.4 ohm oil-filled ignition coil with black finish.

  • Never replace points again
  • Easy two wire hookup
  • Improved starting and mileage
  • Built-in 4000-8000 RPM adjustable rev limiter
  • Picks up timing from distributor cam lobe
  • Fully sealed
  • Operating Voltage: 6-18 Volts, reverse polarity protection, negative ground
  • Current Draw: 3 amps max @ 5,500 RPM
  • RPM Operating Range: 6,500 RPM
  • RPM Limiter Range: 4,000 to 8,000 RPM
  • Primary Voltage Output: 400 volts (inductive discharge)
  • Primary Energy utput: 45 millijoules w/ PS20 coil and 1.65L ballast resistor
  • Peak Spark Gap Current: 50 milliamps w/ PS20 Coil and 1.65L ballast resistor
  • Spark Duration: 2100 microseconds @ 2,000 RPM
  • Coil Dimensions: 2-1/8" D x 5-3/4" L, 1.75 lbs.
  • Coil Primary Resistance: 1.4 ohms
PerTronix 40001 Flame-Thrower Coil, Chrome
(Part #44745001)


The hotter the spark, the easier your engine will start, and this 40,000 volt coil is just the ticket to a quick start! Its higher voltage allows larger spark plug gaps for added power, smoother response and better fuel economy. These coils are internally resisted so they are compatible with many inductive ignition systems.

  • Smooth chrome finish
  • 40,000 volts
  • For use with 12 volt inductive ignition systems.
  • 1.5 Ohm primary resistance
  • Legal in all 50 states and Canada
PerTronix 40011 Flame-Thrower Coil, Black
(Part #44745011)


The hotter the spark, the easier your engine will start, and this 40,000 volt coil is just the ticket to a quick start! Its higher voltage allows larger spark plug gaps for added power, smoother response and better fuel economy. These coils are internally resisted so they are compatible with many inductive ignition systems.

  • 40,000 volts
  • Black finish for that "stock look"
  • For use with 12 volt inductive ignition systems
  • 1.5 Ohm primary resistance.
  • Legal in all 50 states and Canada
