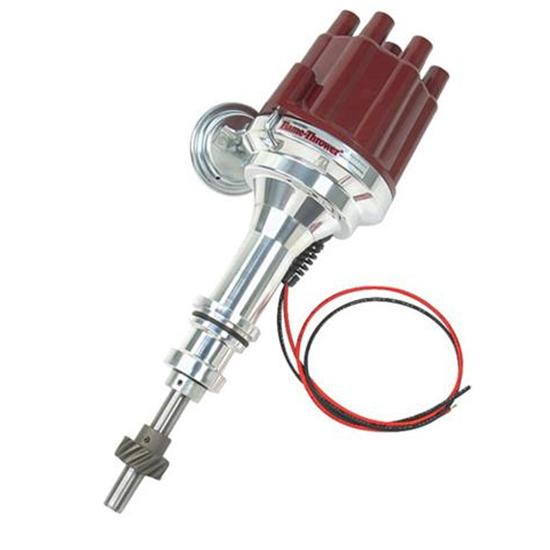

PerTronix D130701 Flame-Thrower S/B Ford 289-302 Billet Distributor
Click image to enlarge
Q & A
What's in the Box
Replace your outdated distributor with this performance proven system. Simply install the distributor in the engine, connect two wires and start it up! Features the reliable and accurate Ignitor II pickup module for maximum performance in a compact package. Compatible with most most CD ignition systems (MSD 6-Series, etc.). Fits Small Bock Ford 221, 260, 289, and 302 V8 (except 5.0L).
- CNC machined 6061-T6 billet aluminum housings offer maximum strength
- Housing is hand polished and buffed to a high luster
- Tempered distributor shaft for accurate timing and extended operational life
- Upper ball bearing and extra long oil impregnated bronze lower bushing provide high RPM stability
- Ignitor II module with adaptive dwell maintains peak energy throughout the RPM range
- Cobalt magnets and Hall Effect trigger for stable timing and precise spark distribution
- Adjustable mechanical advance with proprietary limiting function permits multiple settings
- Factory set with a performance advance curve
- Additional springs for custom advance curves are provided
- High dielectric strength cap and rotor with brass terminals and contact
- Cannot be used with solid core (wire core) ignition wires
447-13701 Instructions (PDF)
For even more performance, consider adding a Flame-Thrower coil for increased spark energy and higher RPM potential.
