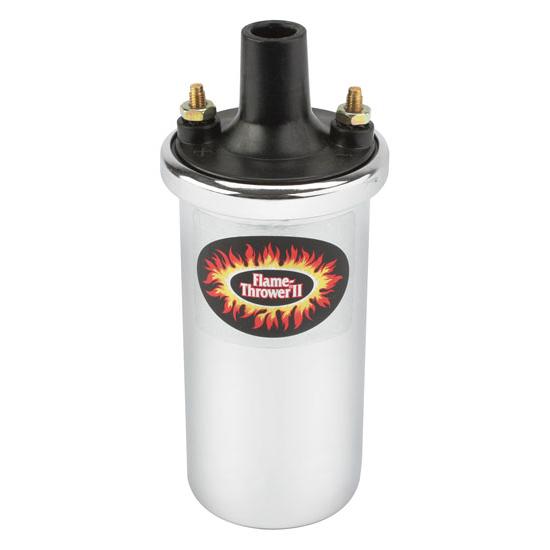

PerTronix 45001 Flame-Thrower II Chrome Coil

Specs
Overall Height:
6.00
Sold in Quantity:
Each
Cap Terminal Style:
Socket / Female
Outside Diameter:
2.125
Resistance:
.60
MFG. Part #:
45001
Secondary Resistance:
10.00
Inductance:
7.2
Maximum Voltage:
45,000
Peak Current:
7.20
Spark Duration:
1.50
Turns Ratio:
108:1
Garage Sale:
No
PerTronix 45001 Flame-Thrower II Chrome Coil
PerTronix 45001 Flame-Thrower II Chrome Coil

Click image to enlarge

Speeday Motors Logo
X
PerTronix 45001 Flame-Thrower II Chrome Coil

Details

Reviews

Q & A

What's in the Box

Flame-Thrower II coils feature a super low 0.6 Ohm primary resistance which make them the ideal coil for Ignitor II ignition systems, Flame-Thrower billet distributors, as well as many other high energy ignitions. Low resistance and improved turns ratio help to produce up to 45,000 volts. This higher voltage enables you to run larger spark plug gaps for added power and better fuel economy.

These coils are also compatible with most capacitive discharge boxes.

Application

6 Volt application with 0.6 ohm resistance for 8 Cyl engines

12 Volt application with 0.32 - 0.6 ohm resistance for 4, 6, & 8 cylinder engines
