Panhard Bar Bracket, 3 Inch Tube Clamp

SAME DAY SHIPPING!

Specs
Material Type:
Steel
Overall Width:
3.00
Sold in Quantity:
Each
Finish:
Painted
Thread Pitch:
3/4"-16
Notes
Measures 5.50" from surface of axle tube to the end.

Share by Email

From
To

Click image to enlarge

X

Details

Reviews

Q & A

What's in the Box

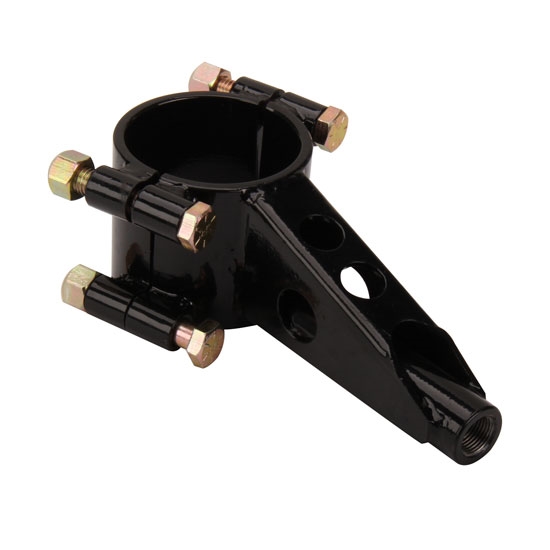

This steel Panhard bar bracket is a single mount, clamp-on style Panhard bracket. Fits 3" axle tubes.
