Painless Wiring 60109 700R4 Transmission Torque Converter Lock-Up Kit

SAME DAY SHIPPING! Order within the next 16 hours 51 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Sold in Quantity:
Kit
Gasket(s) Included:
Yes
MFG. Part #:
60109
Notes
Fits GM 700R4
Painless Wiring 60109 700R4 Transmission Torque Converter Lock-Up Kit

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

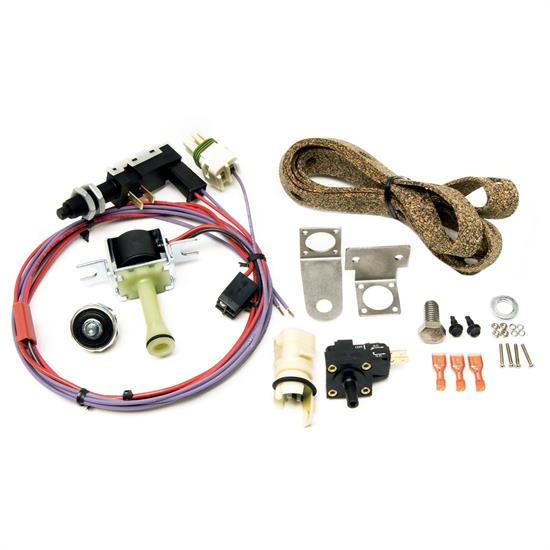

Now there's an inexpensive way to automatically lock up the torque converter in 4th gear without the need for a computer. No need to worry about the speed sensor either! This 700R-4 transmission torque converter lock-up kit lets you run your carbureted engine with an economical overdrive transmission.

This 700R4 transmission torque convertor kit includes new 4th gear pressure switch, new converter lock-up solenoid, new vacuum control switch, new brake control switch, color coded wiring harness, factory connectors, transmission pan gasket and easy-to-follow instructions. For 700R-4 transmission application

NOTE: Minor transmission disassembly is required.

700R4 Transmission Lock-Up Harness Installation Instructions(PDF)
