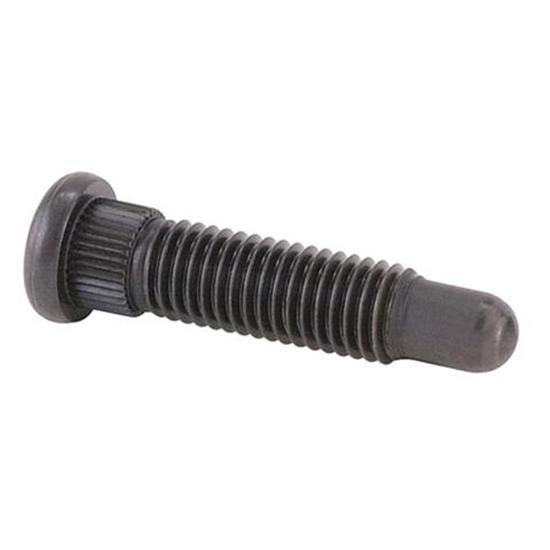

Replace those "puny" stock wheel studs with these "super-strength" oversized wheel studs. Overall length is 3" and 1-3/4"thread length.
This particular wheel stud is perfect for the front discs on your circle track GM car. Most sanctioning bodies require 5/8 studs for racing, and these are more than adequate. Hammer out your old wimpy studs, use Speedway's oversize stud drill bit to enlarge the hole, then install these. TIP: You may need to grind a bit off the head of these studs for them to fit perfectly in your rotor. Test fit it first by installing the stud backwards in the recess to make sure it seats properly. TIP: You don't need a press to install these! Install the stud loosely in the rotor, then use an old 5/8 lug nut and your impact wrench to pull them into place, nice and square!
good products [...]
Get your questions answered by the community. Ask or answer questions below.
1. What is the diameter of the head? 2. What is the width of the head? 3. What is the O.A.L. of wheel bolt from the head mount to end? 4. What is the Length of knurl from head? 5. What is the length from the head mount to end of threads? 6. What is the diameter of the end without threads? 7. What is the radius on the end and the head of the wheel bolt? 8. What is the diameter between the knurl and head? 9. What is the width of the head? 10. What is the tolerance on all the dimensions that i asked about above? Thanks:)
Asked on 3/24/2011 6:29:23 AM by from
This wheel stud is used in our front rotors 91031061 and also in 91031064. It can also be used on other front rotors or rear hubs as well. It is going to be 2 3/4” over all length with a .375” knurl length and .685” knurl diameter. The threads on it are 1 ½” long.
Answered on 3/30/2011 4:48:57 AM by Scott from Speedway Motors
