One-Piece Round Top Model T Windshield for Angled Posts, 14 x 39 Inch

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Chrome
Garage Sale:
No
Overall Height:
14.00
Overall Width:
39.00
Overall Thickness:
.90
Channel Depth:
.22
Channel Width:
.34

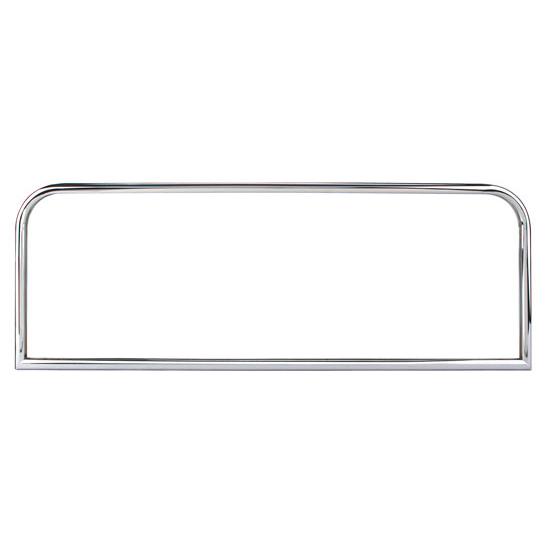

One-Piece Round Top Model T Windshield for Angled Posts, 14 x 39 Inch

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Mr. Roadster is the nation's largest builder and supplier of superior windshield frames! Fits most 'T' bucket bodies. No hinges or rubber divider required. Easy installation. All parts are triple chrome plated. 14" tall. Designed for short style vertical (916-56231) or 30° angled posts (715-1111).
  • Glass and windshield rubber not included
  • If using 3/16" glass or lexan, use with brass setting channel.
  • If using 1/4" glass or lexan, use urethane or setting tape (available from a glass shop) and do not use brass setting channel.

Note: Speedway's 1923-25 Model T bodies use a 39-5/8" wide windshield frame when using short posts.

Customer Reviews

This product has no reviews.

Product Q&A

3 questions : 3 answers

1 answers

what bracket fits this windshield fram and will it fit my 1923 T Bucket do you have a picture of these together do you have glass for this also

Hotrod23
Sacramento, CA, USA
April 27, 2014

what bracket fits this windshield fram and will it fit my 1923 T Bucket do you have a picture of these together do you have glass for this also

Answers

April 29, 2014
EricM
On our 14” round top windshield frame you can use either the standard straight posts number 91656231 or the angled posts number 7151111. The Speedway bodies commonly use the 39 5/8" wide frames and this frame number 55522412 is for a 39”. If unsure of which body you have we suggest ordering the posts first and then fitting them to your body in order to determine which width you need.
1 answers

Are there posts available to fit this windshield to the Speedway roadster body 7152760. Alternatively is there a 1 piece windshield available to fit that body? Thanks

Habu
Niagara Falls,ON, Canada
January 02, 2012

Are there posts available to fit this windshield to the Speedway roadster body 7152760. Alternatively is there a 1 piece windshield available to fit that body? Thanks

Answers

January 05, 2012
John
Part number 55522422 is a 39 5/8” windshield frame as used on our 23-25 T buckets along with the short T posts number 91656231. These posts will require significant modification to use on the 26/27 cowl. What builders are using is the Speedster Vee frame number 55526500 or our new 1926-27 Smoothie posts number 71510623 or the polished version. With these you simply mount the posts in the desired location and angle and template for the glass and there is no need for an actual windshield frame. Our LoBoy posts number 97456932 are also another option.
1 answers

i was wondering if this fits right in the laid back posts or do you have to do a bunch of modifcations to the posts? The frame i have now will not fit in the post they way they should. Just dont want another fit like this or ill keep my own.Also how are y

Randy
Broken Arrow Oklahoma
May 02, 2011

i was wondering if this fits right in the laid back posts or do you have to do a bunch of modifcations to the posts? The frame i have now will not fit in the post they way they should. Just dont want another fit like this or ill keep my own.Also how are y

Answers

May 04, 2011
Tom
This p/n 55522412, W/S FRAME 14\"X39\"ROUND TOP is 5/8" short of fitting Speedway Motors T body. P/n 55522422 is the 39 5/8" length W/S frame for our body. The short posts are cast and may require some clearancing on the inside corners for proper fitment. All Speedway Motors W/S frames are jig welded and assembled, so dimensions will not vary. Lower corner apexes can be removed to allow for glass installation. W/S frames have a \"slug\" inside the tubular frame that can be drilled and tapped for a correct and secure fit.
Page 1 of 1
