Old School 38 Inch Ladder Bars

SAME DAY SHIPPING! Order within the next 1 hour 46 minutes and receive same day shipping

Free Shipping Free Shipping

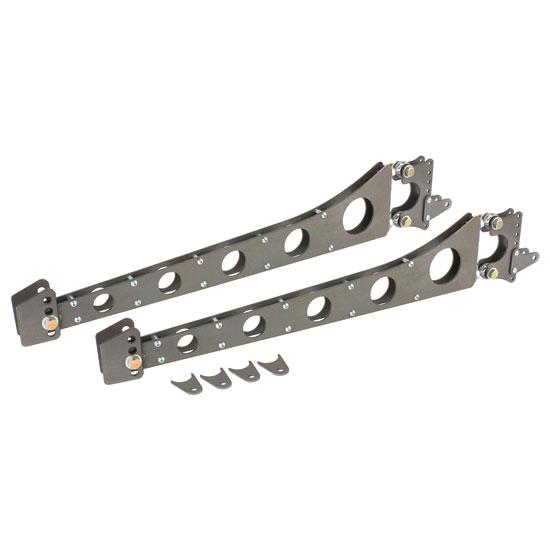

Old School 38 Inch Ladder Bars

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

These ladder bars definitely will get some attention while getting the job done.  Made of heavy .177" plate, we then add lightening holes along with 5/8" polyurethane bushing, axle plates, coilover mounts, and front mounting plates. The length is measured from axle centerline to the front bushing centerline.  This is the same assembled length of our classic 32" rear radius rods.  Welding and fitting required.

Customer Reviews

This product has no reviews.

Product Q&A

4 questions : 4 answers

1 answers

What diameter housing are these built for? I don't want to fill a gap with a lot of weld.

itsagas
January 23, 2014

What diameter housing are these built for? I don't want to fill a gap with a lot of weld.

Answers

January 24, 2014
EricM
These are designed for a 3" axle tube.
1 answers

are this ladders bars useable on the track will they hold up?

doublenickel
richmond, mi
December 11, 2011

are this ladders bars useable on the track will they hold up?

Answers

December 12, 2011
John
Part # 91645121 These heavy duty ladder bars should suffice well on the dragstrip. With the adjustment versatility they allow for pinion angle adjustment and also accommodate the coil over rear suspension.
1 answers

are these for leaf spring or non leaf spring cars, and also are they adjustable. thanks.

sacromento calif
September 17, 2011

are these for leaf spring or non leaf spring cars, and also are they adjustable. thanks.

Answers

September 19, 2011
John
These ladder bars are of universal nature and will work on the high horsepower applications for extra strength. There are 4 adjustment holes on the frame mount end to help obtain the correct pinion angle. Also includes the coil over mount brackets with 6 height choices for more variation in ride height options. Normally used in coil over applications they may be used on other suspension variations at owners discretion.
1 answers

I would like to use these in place of the radius rods on a nostalgia T. Do I weld the front mounting plates to the trans crossmember or is a separate crossmember needed? Are the mounts for the top of the shocks included?

KennyR
August 18, 2015

I would like to use these in place of the radius rods on a nostalgia T. Do I weld the front mounting plates to the trans crossmember or is a separate crossmember needed? Are the mounts for the top of the shocks included?

Answers

August 19, 2015
Andy
Expert
I believe the best place to weld the front ends would be on the frame itself. This will provide for the best structural integrity. There are upper shock mounts included. They are built to weld to a 2" round bar or tube so they may need to be worked a little for the application you plan to use them in.
